Exhaust manifold, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

For left exhaust manifold only

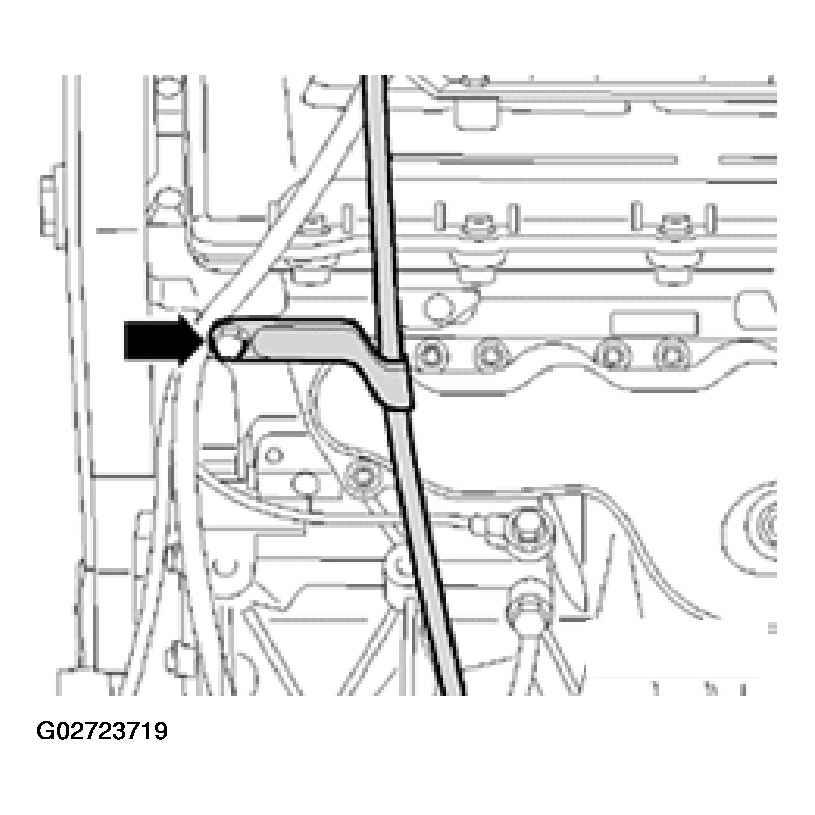

Fig 1: Removing Guide Tube For Oil Dipstick
G02723719Courtesy of AUDI OF AMERICA, INC.

Both exhaust manifolds

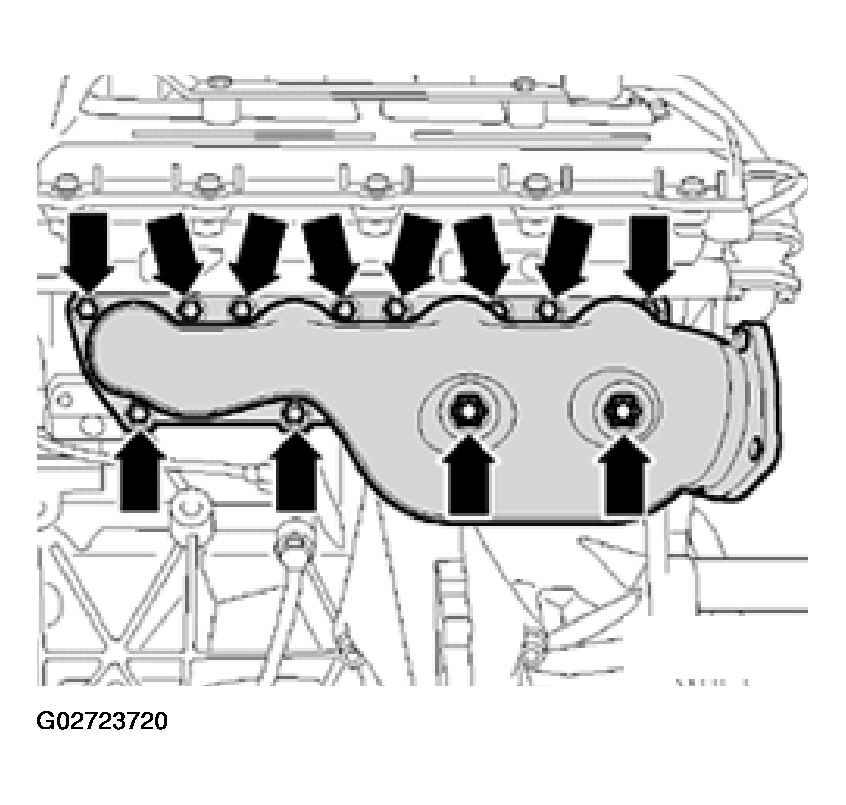

Fig 2: Removing Exhaust Manifold
G02723720Courtesy of AUDI OF AMERICA, INC.
