Checking Display

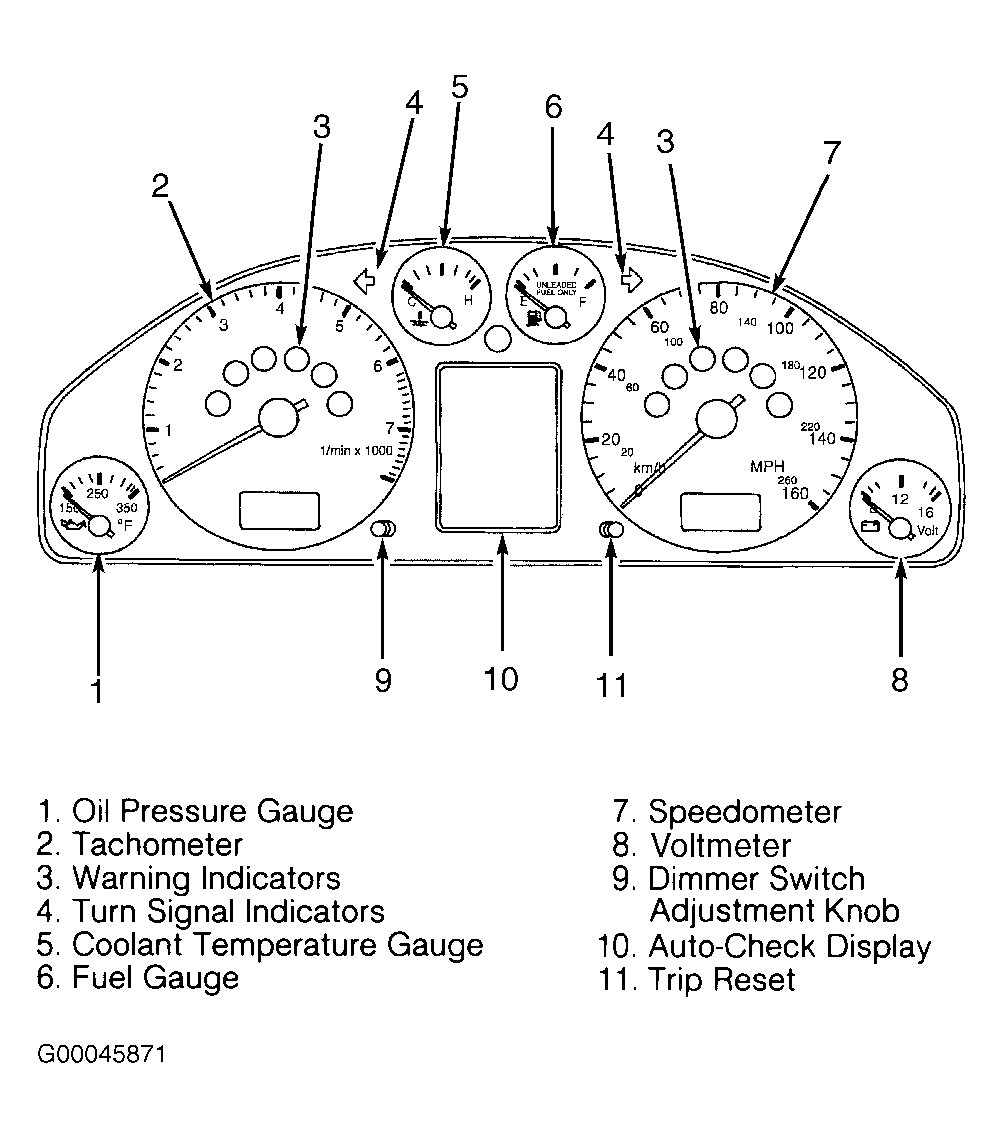

Auto-Check display functions can be tested by briefly pressing dimmer switch adjustment knob. See Figure . Ignition switch must be in ON position with engine on or off, but vehicle must be stationary for test to operate properly. Display will cycle through and turn on various warning indicators.
