Removing head restraint guides

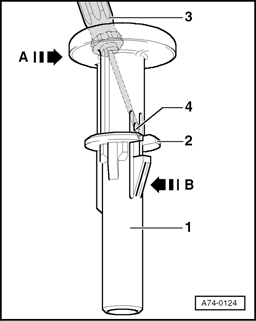

Fig 1: Removing Head Restraint Guides

Courtesy of VOLKSWAGEN UNITED STATES, INC.

For greater clarity, head restraint guide - 1  - is shown removed.

• Insert upholstery needle or screwdriver - 3  - with maximum width of 2 mm into hole - 4  - (opposite retaining clip for head restraint guide).
• Lever screwdriver - 3  - in direction of arrow - A  - , press retainer tab - 2  - in direction of arrow - B  - and pull out head restraint guide - 1  -.
