Wiring for side-airbag, disconnecting from seat pan

• Disconnect harness connector for backrest heater - 2  -.
• Disconnect harness connector to seat belt lock.
• Remove cable ties - 3  - and - 4  - from seat pan.
• Cut through cable ties - 3  - , - 4  - and - 5  -.

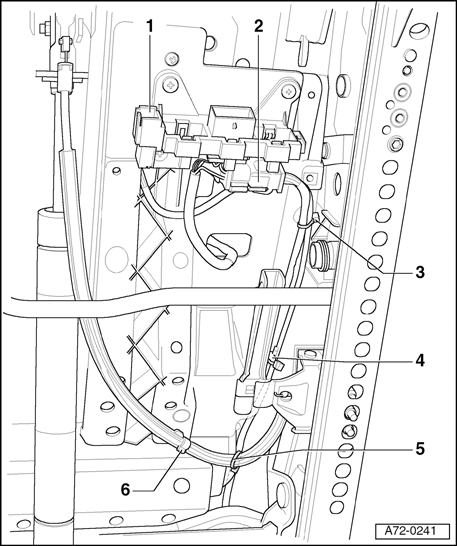

Fig 1: Locating Cable Ties And Connectors

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Release release cable from clip - 6  - and unhook release cable at retaining spring.

Fig 2: Locating Cable Ties And Connectors

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Airbag connector

2 - Heated backrest connector

3 - Cable tie

4 - Cable tie

5 - Cable tie

• After cutting cable tie, remove cable tie but do not replace

6 - Clip
