Side airbag connector, disconnecting

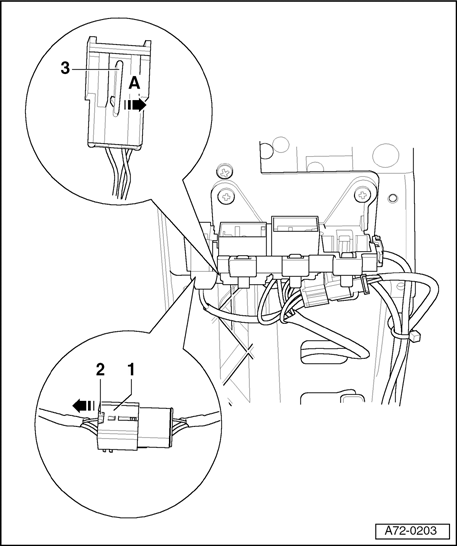

Fig 1: Side Airbag Connector
GW00016680Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Airbag connector

NOTE:
  • Before disconnecting igniter and Ground (GND) wiring, the technician must discharge static electricity by briefly touching door lock striker or bodywork.
  • Parts are shown disassembled in magnified views for better illustration.
  • Pull retainer tab - 3  - with one finger in direction of arrow - A  -.
  • At the same time, pull side-airbag connector with other hand to the rear.
  • Press retainer tab - 2  - and pull off connector - 1  - in direction of arrow.

2 - Retainer tab

3 - Retainer tab
