Seat belt trim, removing

NOTE:
  • Magnified view shows fabric cover removed for a better illustration.
  • The entire belt must be replaced if the seat belt trim is damaged.

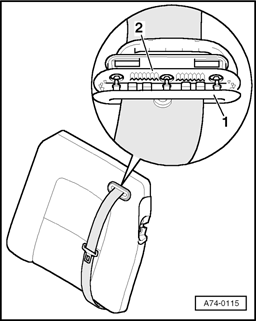

Fig 1: Seat Belt Trim Remove/Install Components
GW00016862Courtesy of VOLKSWAGEN UNITED STATES, INC.
