Cover and padding for rear seat bench, removing and installing

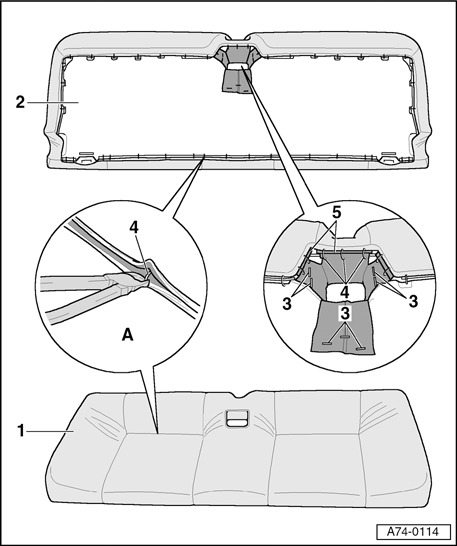

Fig 1: Cover And Padding For Rear Seat Bench Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat cover

• Remove rear seat bench → Rear seat bench, removing and installing .
• Cut through staples - 4  - on back of seat.
• Remove staples - 3  -.
• Roll back seat cover - 1  -.

• Cut through staples - 4  - on front side of seat and remove seat cover - A  -.
• Use upholstery stapler V.A.G 1634/ to install new staples.
• If cover is new, cut into piping - 5  -.

2 - Padding

3 - Staples

• Normal commercial type, as specified by stapler tool manufacturer
• Only use upholstery stapler.

4 - Staples

5 - Piping
