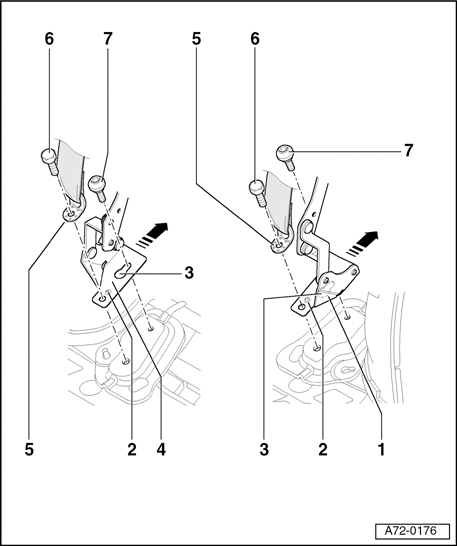

Removing side mounts

1 - Left side mount

• Removing

• Remove rear seat bench → Rear seat bench, removing and installing .
• Remove bolts - 6  - (2x).
• Remove seat belt end fitting - 5  -.
• It is not necessary to remove screws - 7  -.

• Slide seat toward rear in direction of arrow at side and center mounts.
• Guide seat out through widened opening at elongated hole - 3  -.

• Installing

• Guide seat in through widened opening at elongated hole - 3  -.
• Slide seat forward at side and center mounts.
• When installing seat belt end fitting - 5  - , make sure end fitting is located on retainers tabs - 6  -.

2 - Mounting

3 - Elongated hole

4 - Right side mount

5 - Seat belt end fitting

6 - Bolts (2x)

• Tightening torque 55 Nm

7 - Screws (2x)

• Tightening torque 19 Nm
