Detaching center mounting

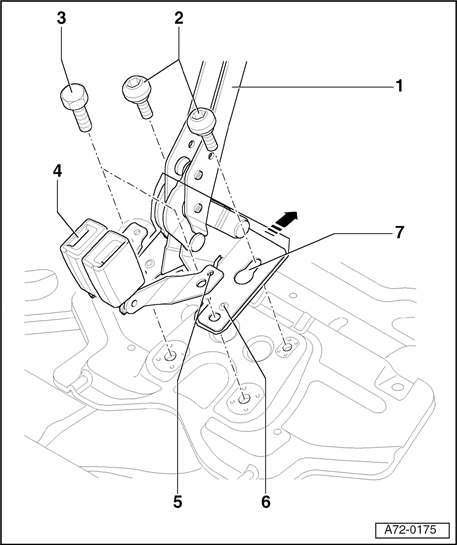

Fig 1: Detaching Center Mounting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center mounting

• Removing

• Remove rear seat bench → Rear seat bench, removing and installing .
• Remove bolts - 3  - (2x).
• Remove seat belt buckles - 4  - (2x).
• It is not necessary to remove screws - 2  -.

• Installing

• When installing belt buckles - 4  - , make sure mounts - 5  - are positioned on retainer tabs - 6  -.

2 - Bolts (2x)

• Tightening torque 19 Nm

3 - Bolts (2x)

• Tightening torque 55 Nm

4 - Buckle

5 - Mount

6 - Retainer tab

7 - Elongated hole
