Spring trim, removing

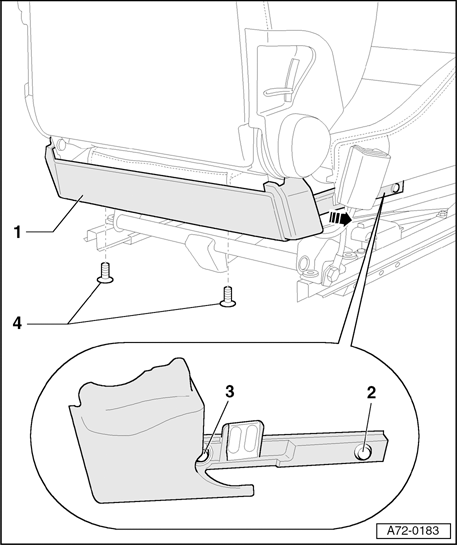

Fig 1: Spring Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Spring trim

• Remove seat → Seat, removing and installing .
• Remove screws - 4  - (2x).
• Use screwdriver to pry out clips - 2  - and - 3  -.
• Pull off spring cover - 1  - approx. 20 cm in direction of - arrow  -.

• Take out spring trim - 1  - toward the rear.

2 - Clip

3 - Clip

4 - Screws (2x)

• Tightening torque 2.5 Nm
