Seat, removing and installing: Notes

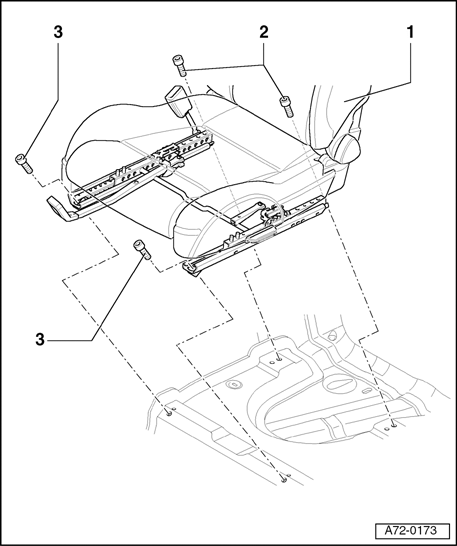

Fig 1: Seat Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

The removal and installation procedures may have to be modified slightly depending on equipment variants.
Obtain radio code before disconnecting battery.

CAUTION:

Observe safety regulations for performing work on airbag → Safety precautions when working on airbag .
For cars with side airbags, follow instructions for installing seat Installing .

CAUTION: Disconnect battery Ground (GND) strap before removing seat.

Fig 2: Seat Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat
