Seat rail, removing

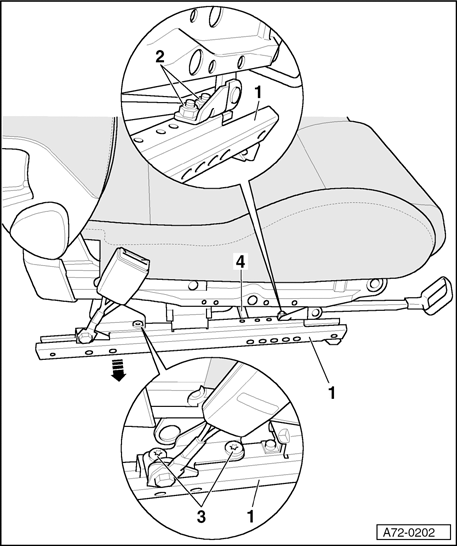

Fig 1: Seat Rail Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat rail

• Remove seat → Seat, removing and installing .
• Move seat to upper position.
• Remove screws - 3  - (2x).
• Remove nuts - 2  - (2x).

• Pull seat rail - 1  - out of longitudinal adjustment mechanism - 4  -.

2 - Nut (2x)

• Tightening torque 20 Nm

3 - Screws (2x)

• Tightening torque 28 Nm

4 - Longitudinal adjustment mechanism
