Front seat backrest, removing and installing

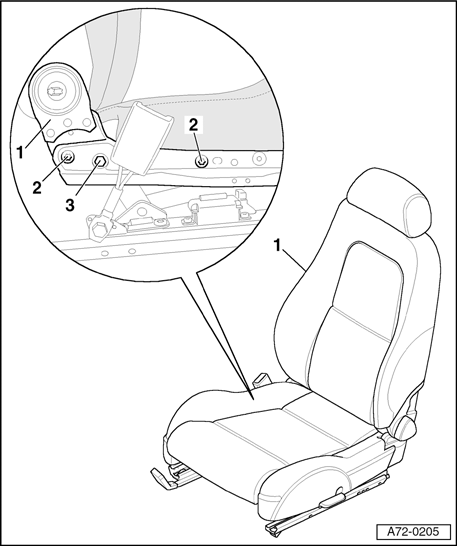

Fig 1: Front Seat Backrest Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Backrest

• Remove seat → Seat, removing and installing .
• Remove spring trim → Spring trim, removing .
• Remove side trim → Side trim, removing .
• Remove seat cushion → Removing and installing seat cushion .

• Remove screws - 2  - (4x).
• Remove screws - 3  - (2x).
• Pull backrest - 1  - out of seat frame to rear.
• Remove upholstery (cover and padding) from backrest → Backrest cover and padding, removing and installing .

2 - Screws (4x)

• Tightening torque 35 Nm

3 - Screws (2x)

• Tightening torque 25 Nm
