Backrest cover panel, removing

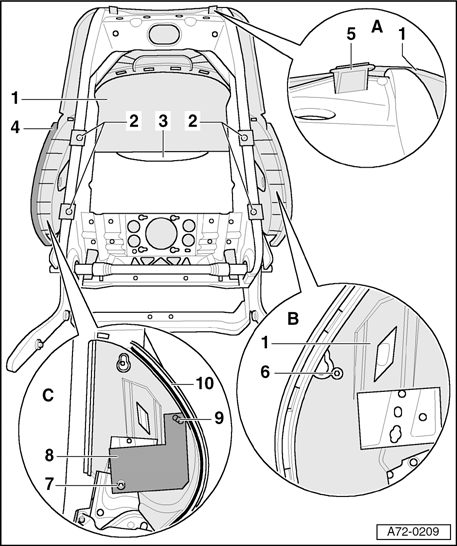

1 - Backrest cover panel

• Remove seat → Seat, removing and installing .
• Detach backrest cover fabric from backrest cover panel → Backrest cover and padding, removing and installing .
• Remove backrest upholstery (padding with cover).
• Remove side filler piece - 4  -.

• Remove screw - 7  -.
• Remove bracket - 8  - with clip - 9  - (magnified view - C  - ).
• Drill out rivet - 6  - (magnified view - B  - ).
• Remove screws - 2  - (4x).

• Detach backrest cover panel - 1  - at the top at tab - 5  - (magnified view - A  - ).

2 - Screws (4x)

• Tightening torque 2.5 Nm

3 - Centre filler piece

• Recess faces upwards

4 - Side filler piece

• Always on side without side airbag

5 - Tab

6 - Rivet

• Always on side with side airbag

7 - Screw(1x)

• Tightening torque 10 Nm

8 - Bracket

• Always on side without side airbag

9 - Clip

10 - Piping

• Always on side without side airbag
