Airbag adapter VAS 5094, connecting

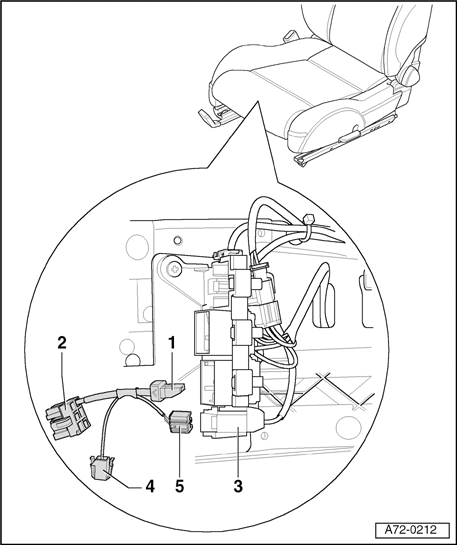

Fig 1: Connecting Airbag Adapter VAS 5094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Airbag adapter - igniter wire connector (2-pin)

• Connect igniter wire - 3  - from airbag module to connector - 5  - (airbag adapter).
• Disconnect connector on vehicles with heated seat.
• Fold back floor covering at rear around guide rail.
• Push seat backward out of guide.

• Lift seat out of vehicle.

2 - Airbag adapter - Ground (GND) wire connector: Audi A6 1998 → , Audi A4 1995 → and Audi A3 1997 →

3 - Igniter wire connector from airbag module

4 - Airbag adapter - Ground (GND) wire connector (Golf 1991 → )

5 - Airbag adapter - igniter wire connector (4-pin)
