Adjusting rod, adjusting
- Actuator rod must be adjusted if only one side is released when seatback is released.
- Actuator rod is adjustable on inner side of seat.
- Remove adjuster knob and release handle on inner side of seat → Adjuster knob and release handle, removing .
- Remove inner seat cover trim → Trim for side fittings, removing .

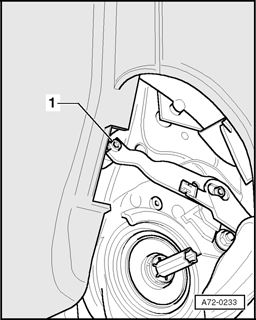

- Loosen screws - 1 - by approx. 2 turns and press off lever with taper at screw - 1 -.
- Move seatback back and forth once; actuator rod self adjusts automatically.
- Tighten screw - 1 -.
- Check seatback release; repeat procedure if necessary.
