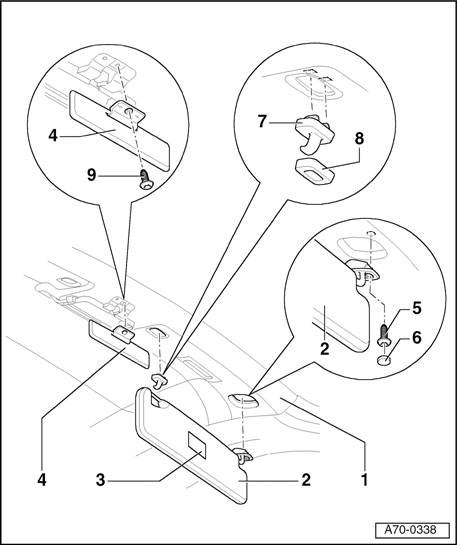

Sun visors, removing and installing

1 - Molded headliner

2 - Sun visor

• Unclip sun visor - 2  - from holder - 7  - , unclip cap - 6  - and remove screw - 5  -.

3 - Sticker

• Airbag sticker only applies for Japan
• When replacing sun visor, install new airbag sticker.
• Apply airbag sticker in center

4 - Centre sun visor

• Remove screw - 9  -.

5 - Screw

• Tightening torque 1.5 Nm

6 - Screw cap

7 - Sun visor holder

• Use screwdriver to pry off cap - 8  - , starting from rear.
• Press sun visor holder - 7  - firmly to one side and pull out sun visor holder - 7  -.

8 - Cap

• Use screwdriver to pry off cap - 8  - , starting from rear.

9 - Screw

• Tightening torque 1.5 Nm
