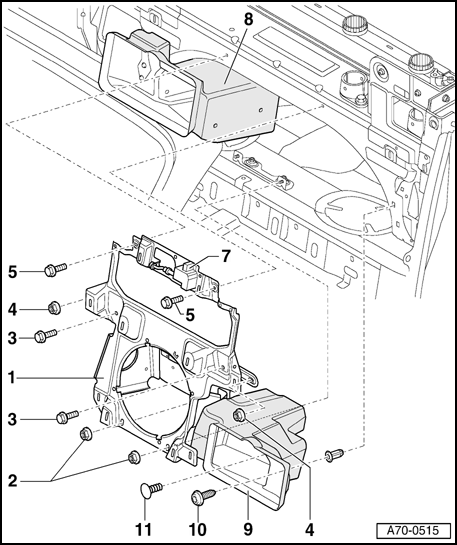

Speaker assembly carrier (vehicles without CD-changer), removing and installing

1 - Speaker assembly carrier

• Loosen rear panel cover (without removing the mounting point for the outer seat belt floor assembly) and insert a wedge between rear panel cover and crossmember for roll bar → Rear panel cover .
• Remove rear panel side trim → Side trim of rear panel .
• Remove clips - 6  - on vehicles without navigation.
• Remove right storage compartment on vehicles with navigation → Right storage compartment, removing and installing .

• Disconnect harness connector to actuator - 7  - for center storage compartment.
• Disconnect cable harness from loudspeaker assembly carrier - 1  -.
• Remove clip - 11  -.
• Remove bolt - 10  - (1x).

• Press floor mat downward and remove nuts - 2  - (2x).
• Remove bolts - 3  - (2x).
• Remove bolts - 5  - (2x).
• Remove nut - 4  - (2x).

• Pull speaker assembly carrier - 1  - with compartment - 9  - forward and disconnect harness connector to loudspeaker.

2 - Nut (2x)

• Tightening torque 8 Nm

3 - Bolts (2x)

• Tightening torque 8 Nm

4 - Nut (2x)

• Tightening torque 8 Nm

5 - Bolts (2x)

• Tightening torque 8 Nm

6 - Clip

7 - Lock actuator for center flap

8 - Right storage compartment

9 - Left storage compartment

10 - Bolt (1x)

11 - Clip
