Rear wind deflector cover, removing and installing

Special tools, testers and auxiliary items required

Fig 1: Assembly Stand VAS 5219 And Transmission Lifter VAS 1383 A

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Assembly stand for Roadster convertible top with securing plates for wind deflector VAS 5219
• Transmission lifter VAS 1383 A

• Remove wind deflector → Wind deflector, removing and installing .
• Position assembly stand VAS 5219 on transmission lifter VAS 1383 A.
• Thread wind deflector to transverse beam of assembly stand VAS 5219.

Fig 2: Rear Wind Deflector Cover Clips

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove clips - 1  - at left and right.

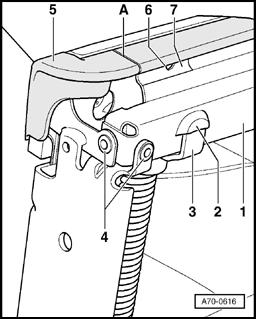

Fig 3: Rear Wind Deflector Cover Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Drill out rivet heads - 4  - (4x).
• Press slider - 7  - inward at left and right using a flat-head screwdriver at hole - 6  -.
• Disconnect wind deflector cover - 1  - from front wind deflector cover - 5  - at gap - A  -.
• Remove wind deflector cover - 1  -.

2 - Opening

3 - Tab
