Rear lid lock cover, removing and installing
Rear lid lock cover, removing and installing

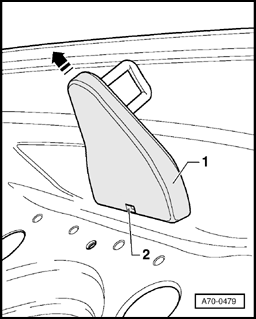

Fig 1: Rear Lid Lock Cover Remove/Install Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Use screwdriver to press down cover -
1
- at opening -
2
- and remove cover -
1
- in direction of arrow.
