Rear cross panel trim, removing and installing: Notes

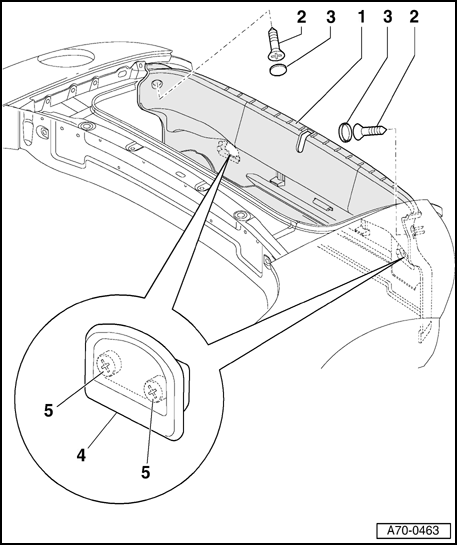

Fig 1: Rear Cross Panel Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear cross panel trim

• Pry off caps - 3  -.
• Remove screws - 2  - (2x).
• Open covers - 4  -.
• Remove bolts - 5  - (4x).

• Remove covers - 4  -.
• Vehicles with emergency release: Remove emergency release Removing emergency release handle
• After assembling trim, make sure seal is properly installed.

2 - Bolts (2x)

• Tightening torque 2 Nm

3 - Caps

4 - Cover

5 - Bolts (4x)

• Tightening torque 4 Nm
