Hinged pocket assembly, removing and installing

• Remove door trim → Front door trim, removing and installing .
• Remove insulation → Front door trim insulation, removing and installing .

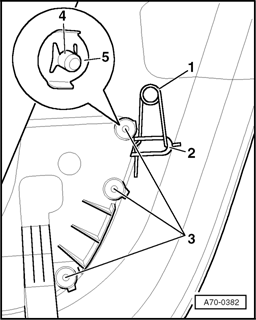

Fig 1: Hinged Pocket Assembly Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Disengage spring - 1  -.
• Drill out welds - 3  - (11x).
• Pull out link - 2  - forward.
• Press out pins - 4  - on new pocket and fasten pocket with clips - 5  - .

• Press through pins - 4  - down to level of back of door trim and fasten new pocket with bolts and washers .
• Or carefully weld pins with soldering iron.
