Rear side trim, removing and installing: Notes

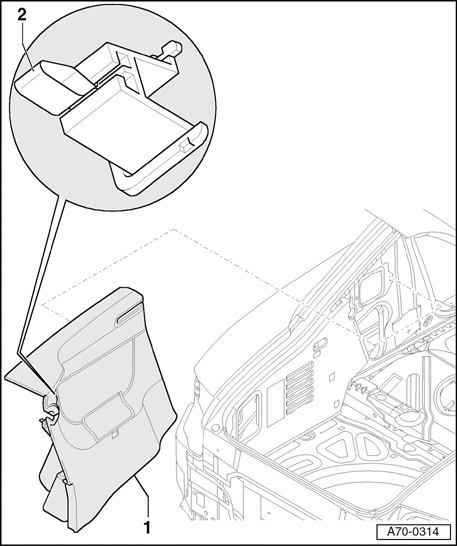

Fig 1: Rear Side Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side trim

• Remove rear seat bench → Rear seat bench, removing and installing  and backrest → Rear seat backrest, removing and installing .
• Remove outer seat belt anchorage point Removing outer seat belt anchorage point
• Remove striker pin of rear seat backrest Removing striker pin
• Starting from top rear, unfasten side trim - 1  - from clips - 2  - (8x).

2 - Clips
