Rear cross panel trim, removing and installing

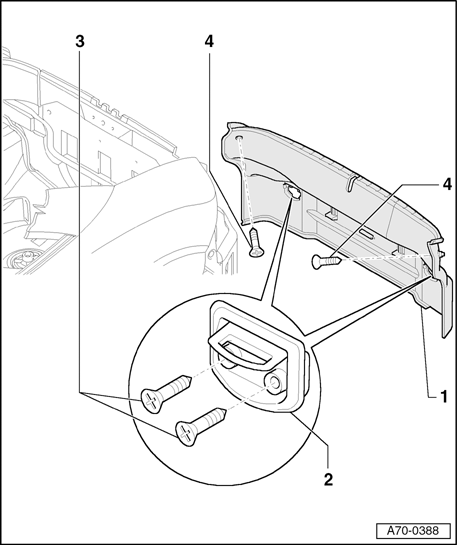

Fig 1: Rear Cross Panel Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear cross panel trim

• Remove screws - 3  - (4x) from fastening rings - 2  - on left and right.
• Remove screws - 4  - (2x).
• Unclip rear cross panel trim - 1  - upward.
• After installing, ensure seal is installed correctly

2 - Fastening rings

3 - Screws (4x)

• Tightening torque 4.5 Nm

4 - Screws (2x)

• Tightening torque 2 Nm
