Foot rest and foot rest support bracket, removing and installing

• Removing foot rest

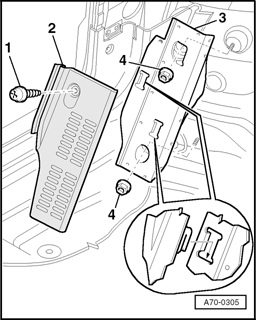

Fig 1: Foot Rest And Screw

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove lower A-pillar trim → Removing and installing lower A-pillar trim .
• Remove screw - 1  -.
• Tightening torque 1.5 Nm
• Press foot rest - 2  - upward and remove.

• Removing foot rest support bracket

• Remove foot rest.
• Fold back floor covering around foot rest support bracket.
• Remove nut - 4  - (2x).
• Tightening torque 4 Nm

• Remove foot rest support bracket - 3  -.
