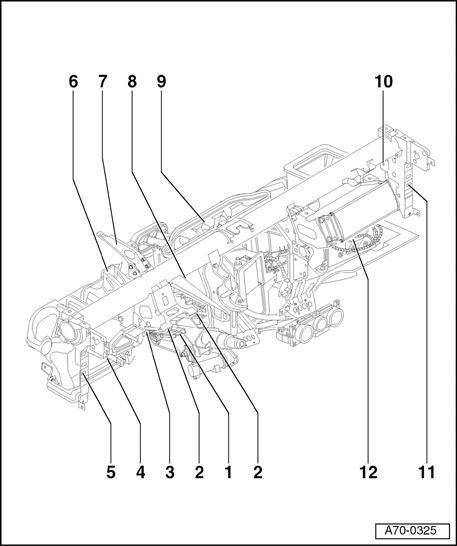

Component locations, overview
1 - Detaching steering column Detaching steering column at top
2 - Removing wiring harness to steering column switch Unfastening wiring harness at steering column
3 - Disconnecting Ground (GND) at steering column Disconnecting Ground (GND) at steering column
4 - Removing relay carrier Removing relay carrier
5 - Unfastening central tube on drivers side Detaching central tube from bodywork (drivers side)
6 - Removing screw in plenum chamber Removing bolt in plenum chamber
7 - Removing brace at steering column Removing brace at steering column
8 - Removing center Ground (GND) point Disconnecting central Ground (GND) point
9 - Removing defroster duct Removing defroster duct
10 - Detaching wiring harness on passengers side Detaching wiring harness on passengers side from central tube
11 - Detaching central tube on passenger side Detaching central tube from bodywork (passenger-side)
12 - Detaching wiring harness for passengers airbag Unplugging connector for passengers airbag
