Side view

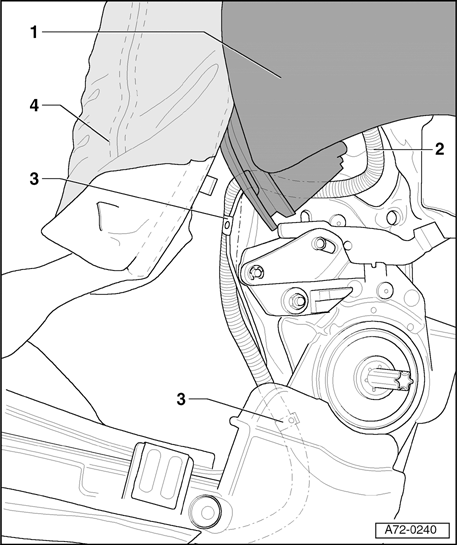

Fig 1: Clip Position At Backrest Frame - Side View
GW00016684Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Side-airbag unit

2 - Side airbag wiring

3 - Clips

4 - Fabric
