Front view

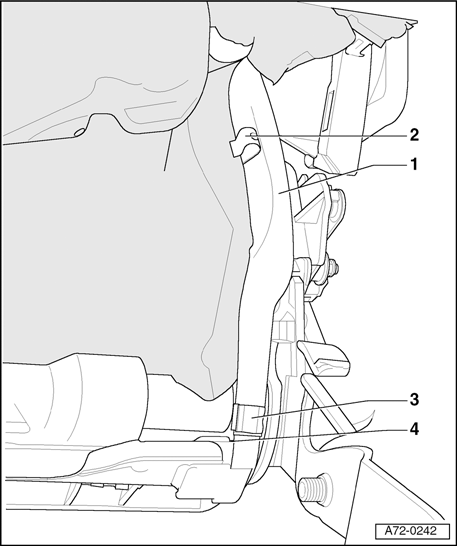

Fig 1: Clip Position At Backrest Frame - Front View

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Backrest frame

2 - Upper clip

3 - Lower clip

• Position at height of fabric trim - 4  -

4 - Fabric trim
