Outer floor panel anchorage point

Fig 1: Anchorage Point Cover, Slip Tab And Press Tabs

GW00016657

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Open flap of cover - 1 - by pulling in direction of arrow.
Pull cover - 1 - downward to remove from floor covering.
When installing, slip tab - 3 - under floor covering.
By closing flap, press tabs - 2 - under floor covering.

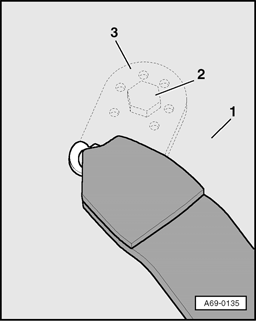

Fig 2: Anchorage Point Cover Bolt And Plate

GW00016658

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - 2 -.
Tightening torque 55 Nm
Pull plate - 3 - out from under floor covering.
