Belt trim and belt casing, removing

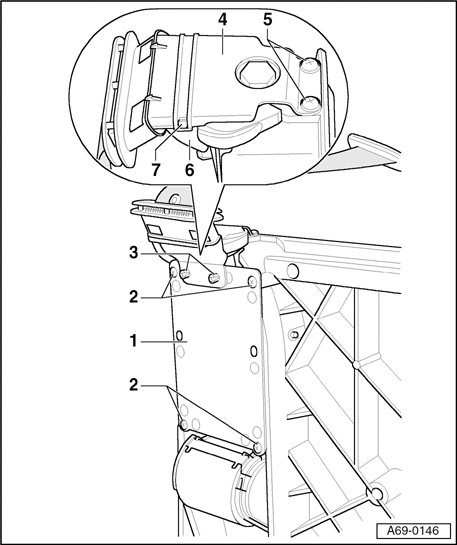

Fig 1: Belt Trim And Belt Casing Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Belt trim

• Belt trim and belt casing can only be removed together

• Remove screws - 2  - (4x).
• Release retainer tab - 7  - and fold down bottom part of belt casing - 6  -.
• Remove screws - 5  - (2x).
• Detach belt trim - 1  - from casing - 3  - by pressing out clips - 4  -.

2 - Screws (4x)

3 - Clips

4 - Belt casing

• Belt trim and belt casing can only be removed together

• Remove screws - 2  - (4x).
• Release retainer tab - 7  - and fold down bottom part of belt casing - 6  -.
• Remove screws - 5  - (2x).
• Detach belt trim - 1  - from casing - 4  - by pressing out clips - 3  -.

5 - Screws (2x)

6 - Bottom part of belt casing

7 - Retainer tab
