Belt guide fitting anchorage point
- Remove outer floor panel anchorage point → Outer floor panel anchorage point .
- Remove side trim → Rear side trim, removing and installing .

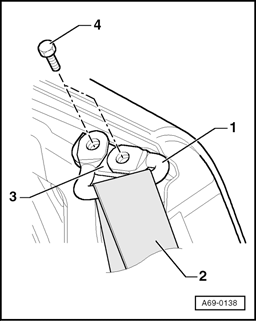

- Remove bolts - 4 - (2x).
- Tightening torque 55 Nm
- Thread belt guide fitting - 1 - out of belt - 2 -.
- When installing, make sure to install washer - 3 -.
