B-pillar brace, removing
B-pillar brace, removing
Remove side trim →
Rear side trim, removing and installing
.

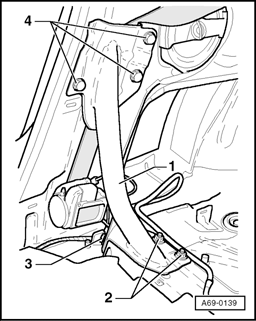

Fig 1: B-Pillar Brace Remove/Install Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Remove nuts -
2
- (2x).
Tightening torque 40 Nm
Remove screw -
3
-.
Tightening torque 40 Nm
Remove screws -
4
- (3x).
Tightening torque 40 Nm
