Roll bar, removing and installing: Notes

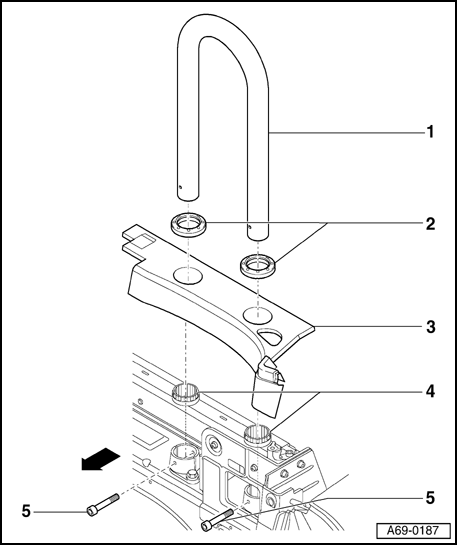

1 - Rollover bar

• Removing

• Removing collar for roll bar Disengaging collar for roll bar
• Loosen rear panel cover (without removing the anchorage point for the outer seat belt floor assembly) and insert a wedge between rear panel cover and crossmember for roll bar → Rear panel cover .
• Remove rear panel side trim → Side trim of rear panel .
• Remove bolts - 5  - (2x).

• Remove roll bar - 1  - from rubber guide - 4  - and rear panel cover - 3  -.

• Installing

• Before installing roll bar, check to be sure rubber guide is properly seated Installing rubber guide
• Do not use anything other than soapy water as lubricant.

2 - Collars

3 - Rear panel cover

4 - Rubber guide

5 - Bolts (2x)

• Tightening torque 20 Nm
