Roll bar flanges, removing

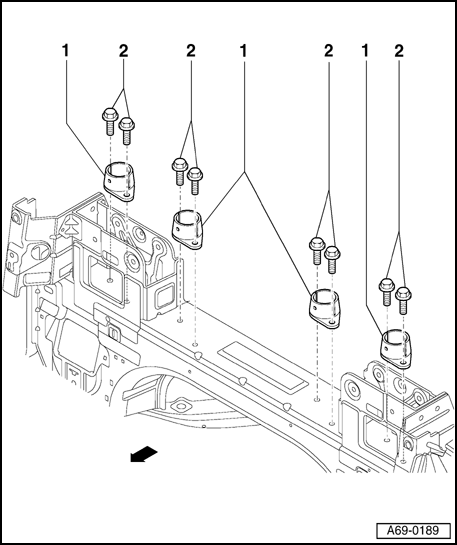

Fig 1: Roll Bar Flanges Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rollover bar flanges

• Removing

• Remove appropriate rollover bar → Roll bar, removing and installing .
• Remove speaker assembly carrier → Speaker assembly carrier (vehicles without CD-changer), removing and installing .
• Remove bolts - 2  - (2x).
• Remove flange - 1  -.

• Installing

• Threaded hole faces rear when installing.
• Install bolts - 2  - half way.
• Install roll bar.
• Tighten bolts - 2  -.

• Perform installation in reverse order of removal.

2 - Bolts (2x)

• Tightening torque 20 Nm
