Passenger side airbag, removing and installing: Notes
CAUTION:
Always read updated safety regulations for performing repair work on airbag →
Safety precautions when working on airbag .

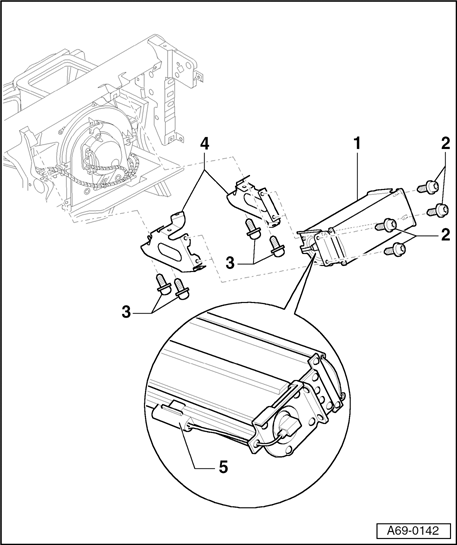

1 - Passenger side airbag unit
- Removing
- Disconnect battery Ground (GND) strap.
- Remove glove box → Glove box, removing and installing .
- Disconnect connector - 5 - Disconnecting airbag connector
CAUTION:
Never unplug red two-pin connector at passenger side airbag unit.
- Remove screws - 3 - (4x).
- Remove airbag unit.
- Remove screws - 2 - (4x).
- Set down airbag unit with impact cushion facing upward.
- Installing
- Install airbag unit.
- Make sure connector - 5 - engages properly (audible click).
- Switch ignition on.
CAUTION:
Make sure no one is in vehicle when connecting battery.
- Connect battery Ground (GND) strap.
2 - Screws (4x)
- Tightening torque 12 Nm
- Must be replaced if airbag has been triggered
3 - Screws (4x)
- Tightening torque 12 Nm
- Must be replaced if airbag has triggered
4 - Support
- Must be replaced if airbag has triggered
- Remove airbag unit.
- Remove screws - 2 - (4x).
5 - Connector
