LATCH system, "Lower Anchors and Tethers for CHildren", removing and installing - TT Coupe

Rear top tethers

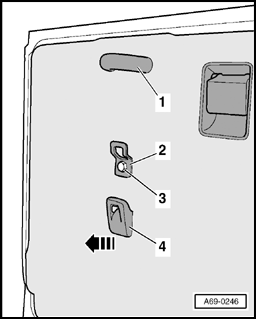

Fig 1: Latch System Remove/Install Components - TT Coupe

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pry out cover - 4  - on bottom side (direction of arrow).
• Remove bolt - 3  -
• Remove anchor - 2  -

• To remove strap - 1  - , remove rear seat upholstery.
• Illustration shows backrest without upholstery from behind.

2 - Threaded socket for child seat anchor

Rear lower anchors
