LATCH (Lower Anchors and Tethers for CHildren) bracket, removing and installing

• Remove rear seat bench → Rear seat bench, removing and installing .
• Remove left or right rear seat backrest → Rear seat backrest, removing and installing .

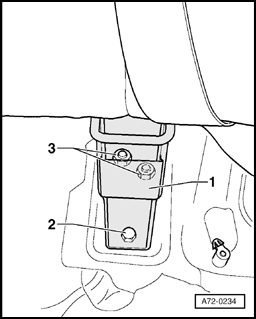

Fig 1: LATCH Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove bolt - 2  -.
• Tightening torque 23 Nm
• Remove nut - 3  - (2x).
• Tightening torque 23 Nm

• Remove LATCH (Lower Anchors and Tethers for CHildren) bracket - 1  -.
