Tray on rear section of center console, overview

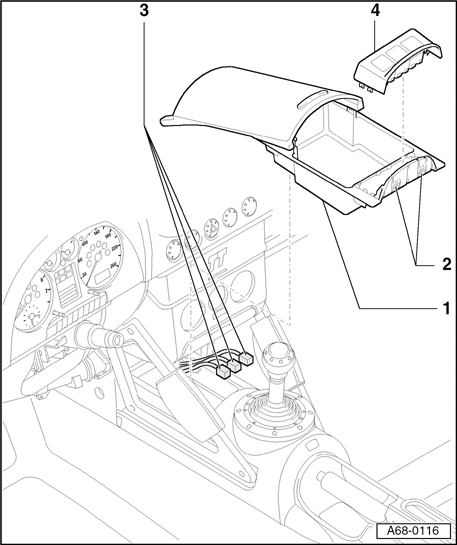

Fig 1: Tray On Rear Section Of Center Console Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Tray

• Slightly open lid of tray - 1  -.
• Remove switch console - 4  -.
• Disconnect connectors - 3  - (3x).
• Use screwdriver to release retainer tabs - 2  - (2x).

• Use flat screwdriver to press down center catch (between retainer tabs - 2  - ).

2 - Retainer tabs

3 - Connector (3x)

4 - Switch console

• Unclip switch console - 4  - at top.
• Disconnect harness connectors - 3  - (3x).
