Ribbed belt, removing and installing: Notes
NOTE:

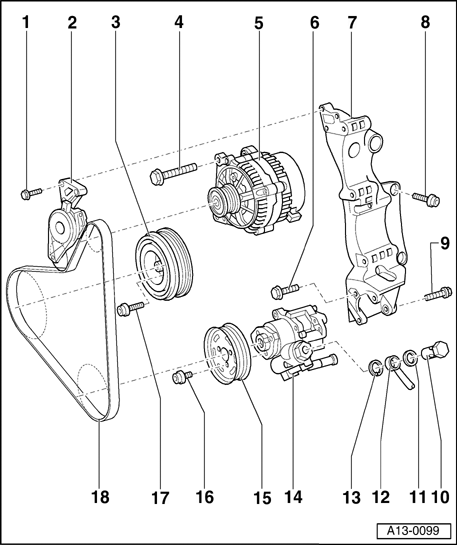

- The following illustration shows the belt drive on vehicles without air conditioner.
- Before removing the ribbed belt, mark the direction of rotation using chalk or a felt marker pen. If the belt rotates in the wrong direction when it is reinstalled, this can cause breakage. Ensure that the belt is properly seated in the pulleys when installing.
1 - 25 Nm
2 - Tensioning element for ribbed belt
- Turn with open-end wrench to loosen ribbed belt. Refer to Removing ribbed belt
3 - Vibration damper
- With pulley for ribbed belt
- Can only be installed in one position
4 - 25 Nm
5 - Alternator
- Removing and installing:
Refer to 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL ; Removing and installing alternator
- To facilitate the positioning of alternator on bracket, knock back threaded bushings for retaining bolts slightly
6 - 25 Nm
7 - Bracket
- Illustration shows version for vehicles without air conditioner
8 - 45 Nm
9 - 25 Nm
10 - Banjo bolt, 30 Nm
11 - Sealing ring
- Always replace
12 - Pressure line
13 - Sealing ring
- Always replace
14 - Vane pump
- For power steering
- Removing and installing:
Refer to 48 STEERING ; Removing and installing vane pump
- To facilitate positioning of vane pump on bracket, knock back threaded bushings for retaining bolts slightly
15 - Pulley
- For vane pump
16 - 25 Nm
17 - 25 Nm
18 - Ribbed belt
- Position of ribbed belt on vehicles without air conditioner. See Fig. 1 Ribbed belt on vehicles without air conditioner
- Position of ribbed belt on vehicles with air conditioner. See Fig. 2 Ribbed belt on vehicles with air conditioner
- A double ribbed belt is installed on engines with A/C compressor
- Mark direction of rotation before removing
- Check for wear
- Do not kink
- Removing ribbed belt. Refer to Removing ribbed belt
- Installing ribbed belt. Refer to Installing ribbed belt
