Front door trim, removing and installing: Removing

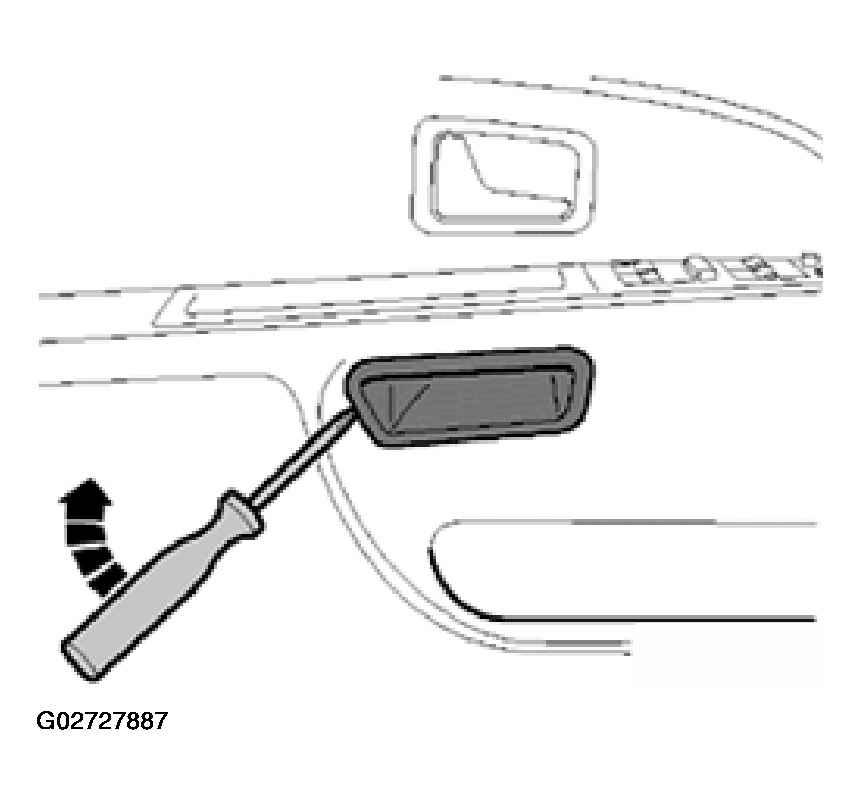

Fig 2: Prying Off Lower Part Of Handle Using Dull Screwdriver

Courtesy of AUDI OF AMERICA, INC.

Remove lower part of handle well from door trim.

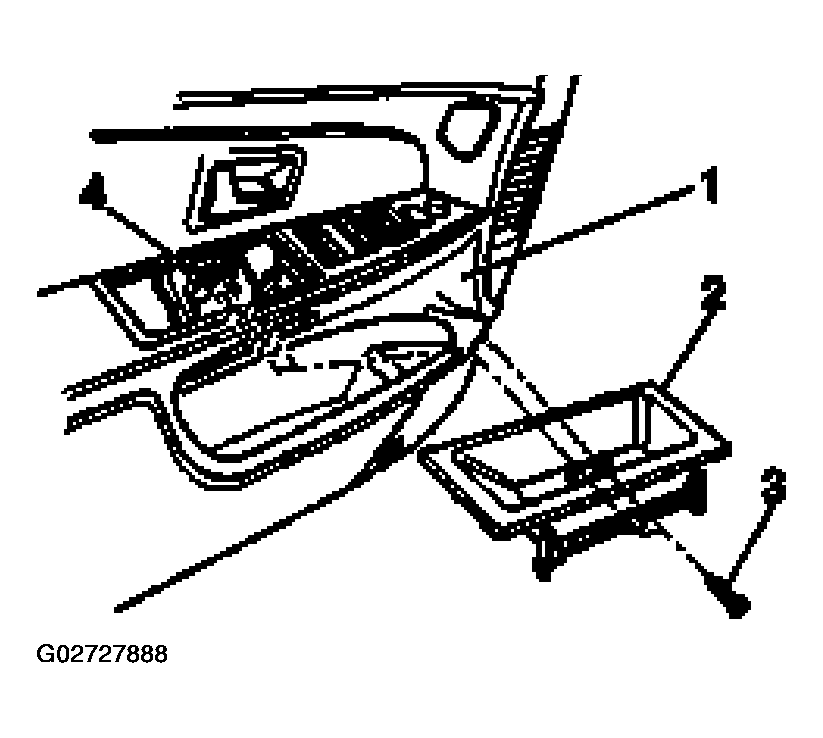

Remove screws -3- for handle well upper part -2-.
Remove handle well-upper part from the top out of door trim -1-.
NOTE: For one part handle well upper part, the front part of the handle well upper part (with switches) must be unclipped from the door trim and connectors disconnected.

Fig 3: Removing Screws & Handle Well-Upper Part From Front Door Trim

Courtesy of AUDI OF AMERICA, INC.

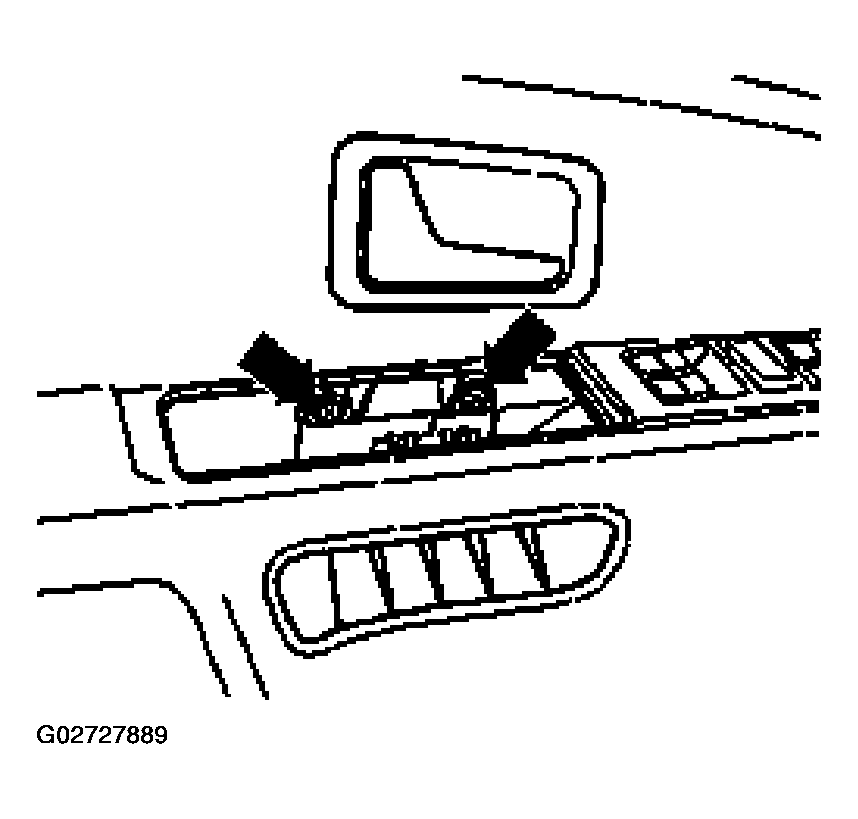

Fig 4: Removing Phillips-Head Screws

Courtesy of AUDI OF AMERICA, INC.

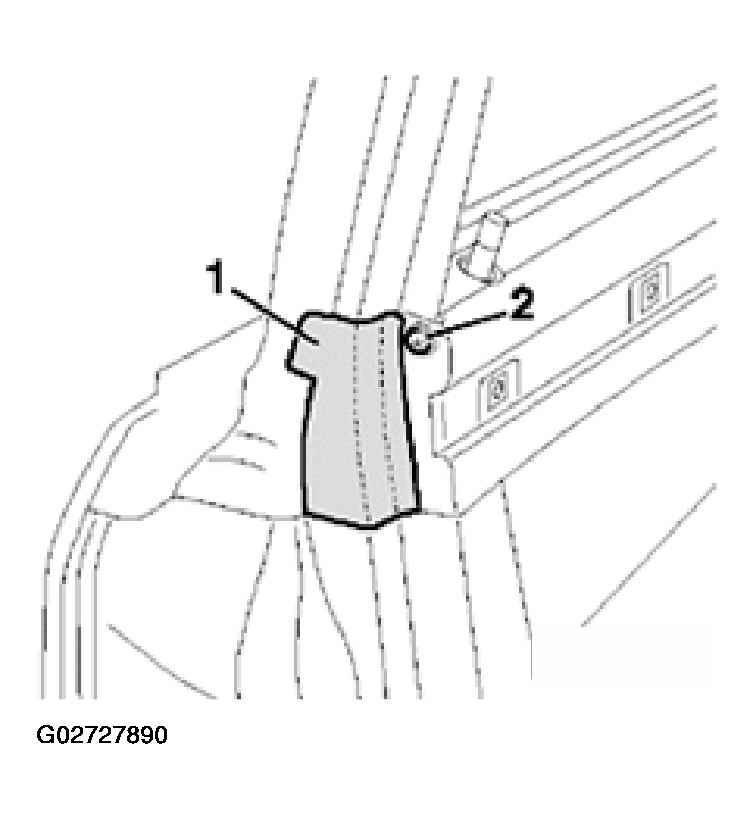

Fig 5: Removing Phillips-Head Screws & Loosening Adhesive From Rear Filler

Courtesy of AUDI OF AMERICA, INC.

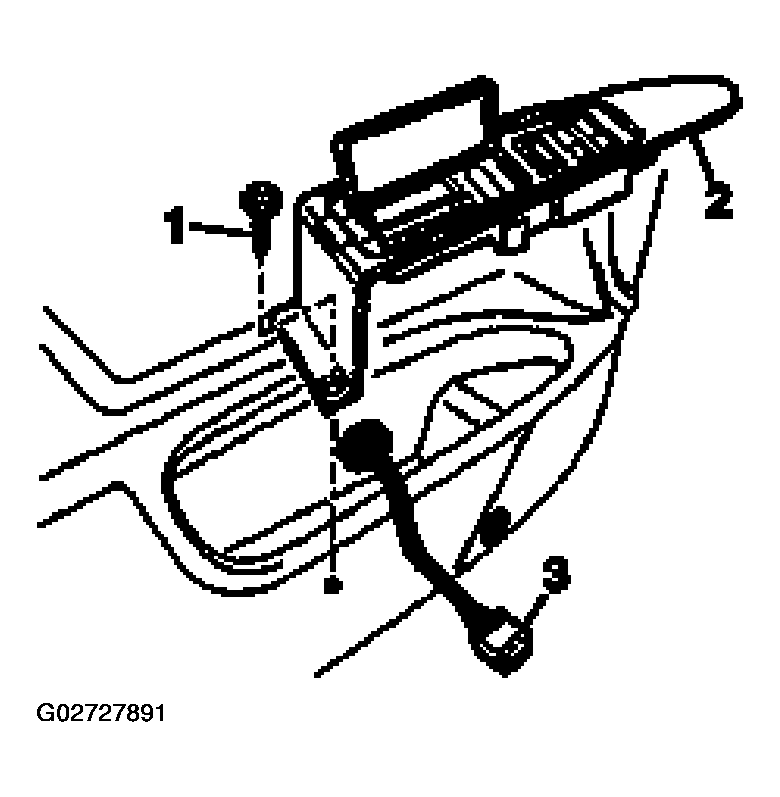

For vehicles with memory function and/or auxiliary heater unscrew Phillips-head screw -1- of switch mounting -2- at door trim.
Remove switch mounting and disconnect connectors -3-.

Fig 6: Unscrewing Phillips-Head Screw, Removing Switch Mounting And Disconnecting Connectors

Courtesy of AUDI OF AMERICA, INC.

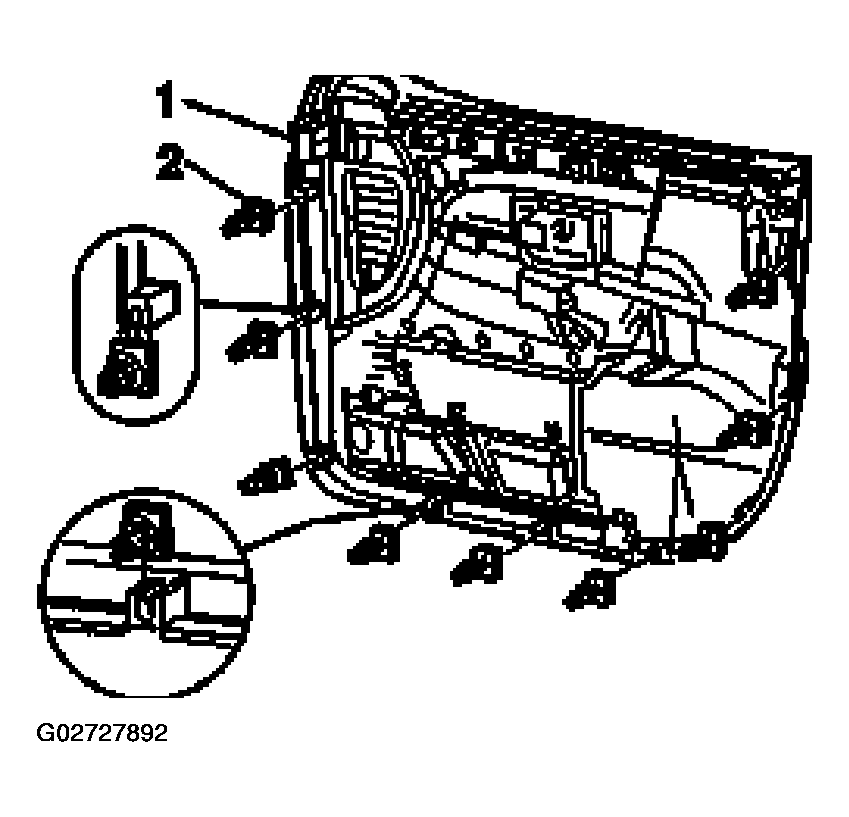

Unclip door trim -1- from support for door interior components.
2 - Retaining clips for door trim.

Fig 7: Unclipping Door Trim From Support For Door Interior Components

Courtesy of AUDI OF AMERICA, INC.

Remove door trim from top over the door safety button.
Slope door trim and remove connector from switch for interior lock driver side.

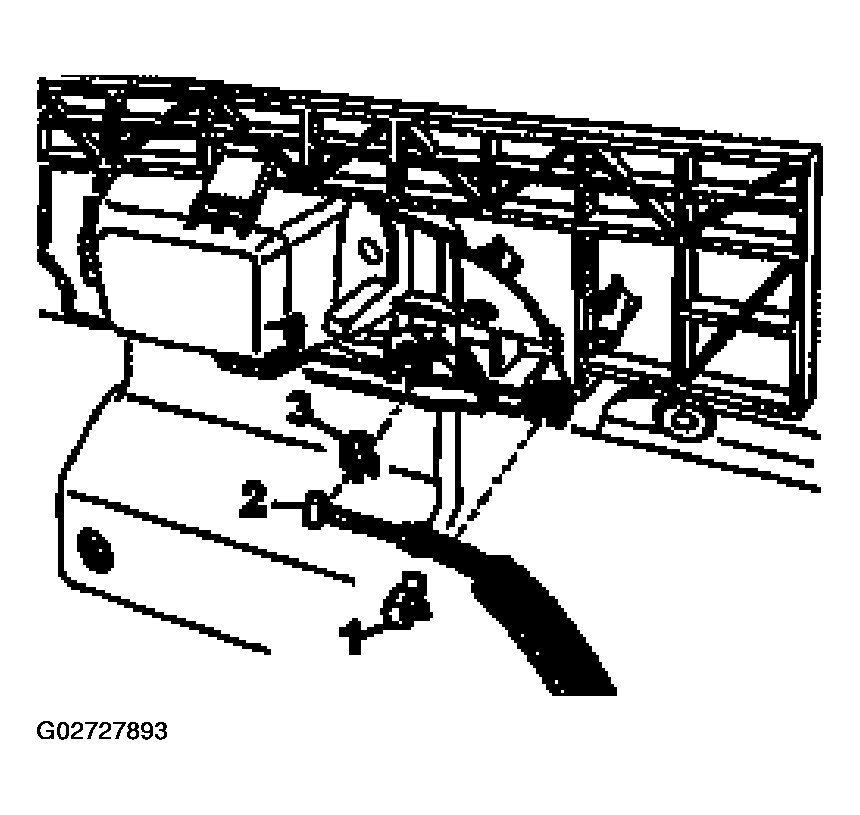

Pry lock clip -1- at Bowden cable -2- of door opener.
Unhook nipple of Bowden cable with retaining clip -3- at door opener.
NOTE: Make sure that the retaining clip of Bowden cable does not get lost.

Fig 8: Prying Lock Clip At Bowden Cable Of Door Opener

Courtesy of AUDI OF AMERICA, INC.

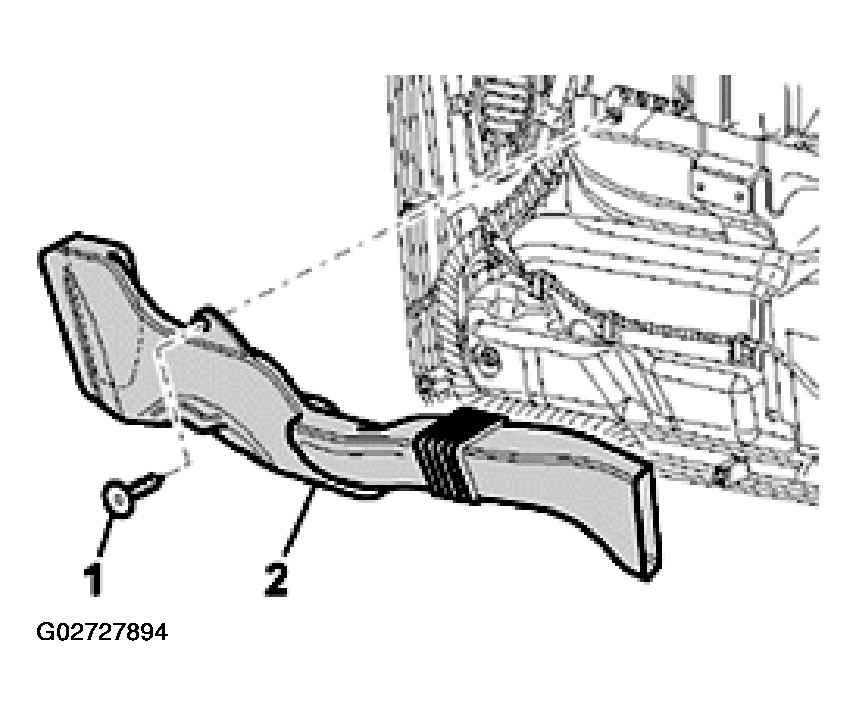

Fig 9: Locating Clip Of Air Duct At Door Trim

Courtesy of AUDI OF AMERICA, INC.
