Power steering / oil circulation for 8-cylinder engine bi-turbo
>>
General Information
>>
Installation position, intake hose at power steering fluid reservoir, valid for all engines
Installation position, intake hose at power steering fluid reservoir, valid for all engines
The marking on intake hose -1- must align with the seam on the power steering fluid reservoir.

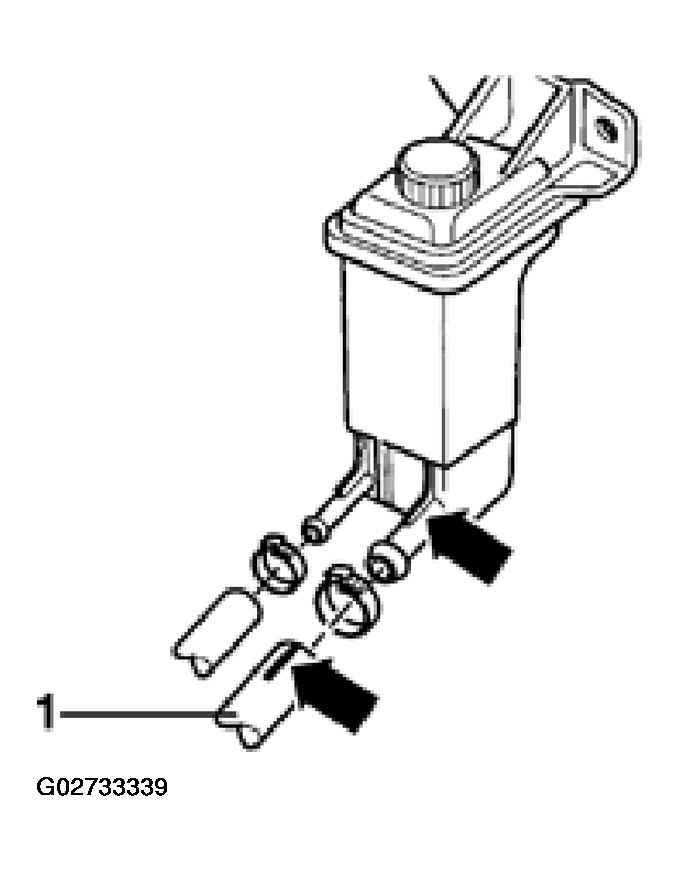

Fig 1: Identifying Installation Position, Intake Hose At Power Steering Fluid Reservoir
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
