Power steering / oil circulation for 8-cylinder engine bi-turbo
>>
General Information
>>
Installation position, intake and expansion hose at power steering pump
Installation position, intake and expansion hose at power steering pump
Expansion hose
Angle -a- : approx. 74°
Suction pipe
Angle -b- : approx. 90°

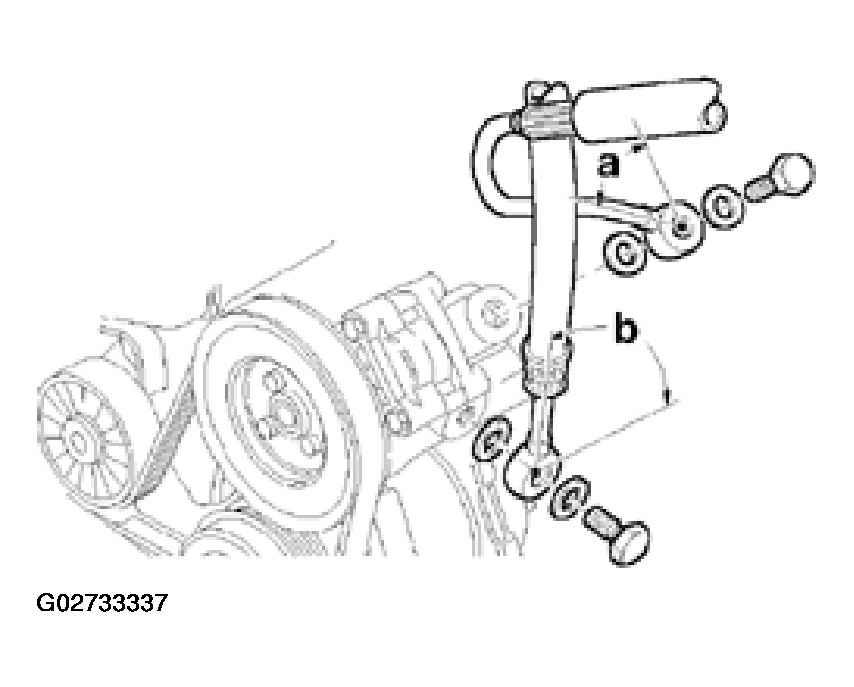

Fig 1: Identifying Installation Position, Intake And Expansion Hose At Power Steering Pump (8-Cylinder Engine Bi-Turbo)
Courtesy of AUDI OF AMERICA, INC.
