Instrument cluster with maintenance interval extension (MIE), On Board Diagnostic (OBD)
>>
Measuring Value Block, reading
>>
Measuring value block 14
Measuring value block 14

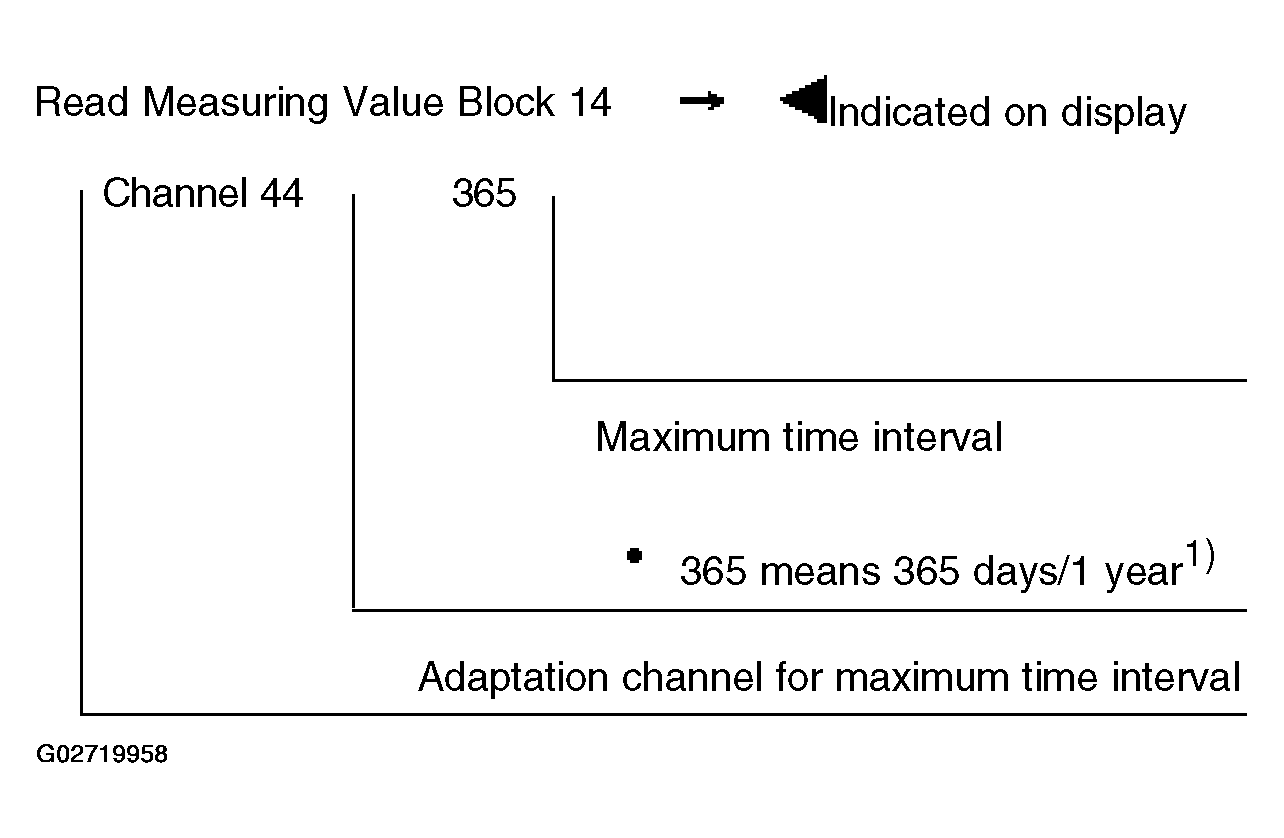

Fig 1: Measuring Value Block 14 - Instrument Cluster With Maintenance Interval Extension
1)
The currently valid specifications can be found in the "Maintenance" book.
