Resetting SRI after service

Indicated on display

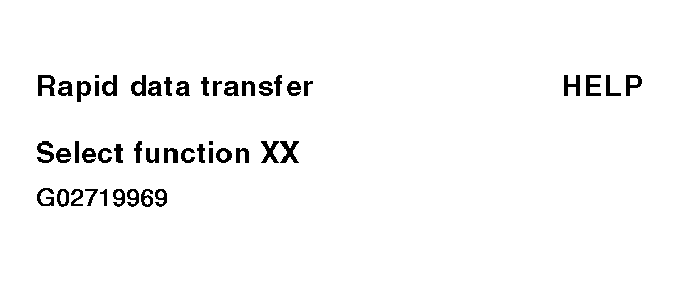

Fig 1: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (1 Of 9)

Indicated on display

Fig 2: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (2 Of 9)

Indicated on display

Fig 3: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (3 Of 9)

NOTE:

The Service Reminder Indicator (SRI) reminds the driver when service is necessary. Indication is in center display.
Service reminder appears 1 month or 1200 miles before service limit is reached. Resolution is 100 miles. Example for display: After a total driving distance of 7000 miles, "SERVICE IN 1000 miles" is indicated.
The remaining distance to service can be checked via the menu in center display by pressing the clock set button once.
When a service event arrives, the text information appears in the center display for 5 seconds when ignition is switched on. It is shown after the note for automatic transmission and a target input for navigation (if applicable). Display: "SERVICE!".
The currently valid specifications can be found in the "Maintenance" book.
Data version of instrument cluster. See ON BOARD DIAGNOSTIC (OBD) FUNCTIONS .
Channels 40, 41, 46, 47 and 48 which display the dynamic value of the service event are set to "0" automatically.

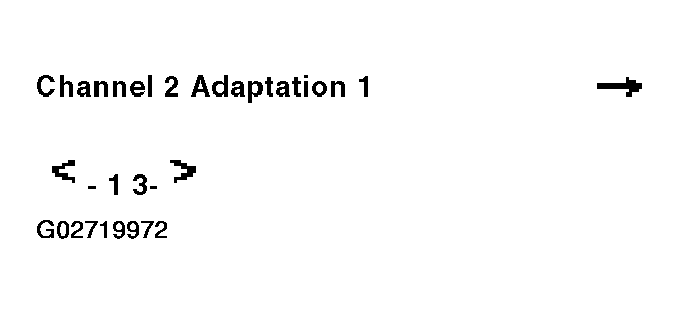

Fig 4: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (4 Of 9)

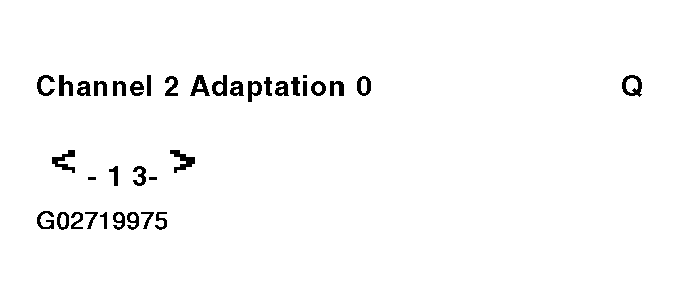

Indicated on display: Service event is displayed

1 - means service is active, for example "SERVICE!" is displayed in the instrument cluster.

NOTE: Only reset SRI via direct input.

Indicated on display

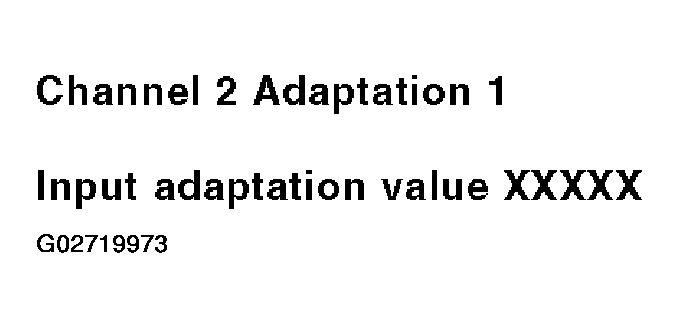

Fig 5: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (5 Of 9)

Service event is reset using the following adaptation values:

SRI ADAPTATION VALUE - INSTRUMENT CLUSTER WITH MAINTENANCE INTERVAL EXTENSION

Adaptation value	Service event
00000	Reset

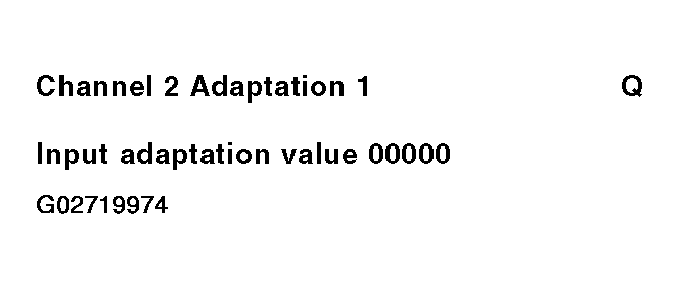

Using the keypad enter the appropriate adaptation value (00000) to erase the service.
Press -0- button five times.

Indicated on display

Fig 6: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (6 Of 9)

Indicated on display

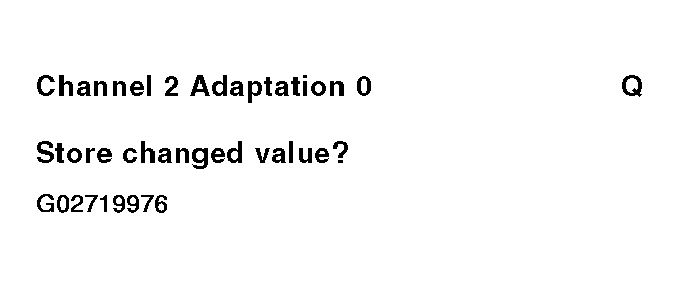

Fig 7: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (7 Of 9)

0 - means service is reset, that is, after confirming with -Q- button, "SERVICE IN 8000 miles" is displayed in the instrument cluster.

Indicated on display

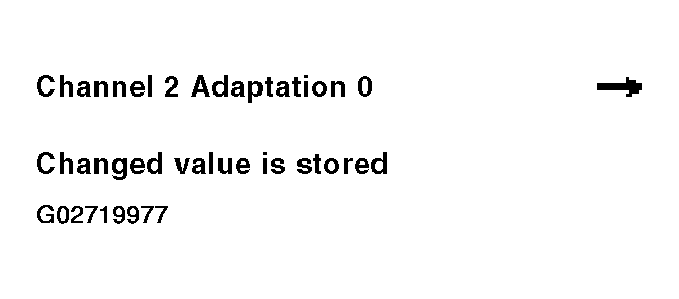

Fig 8: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (8 Of 9)

Indicated on display

Fig 9: VAG 1551 Scan Tool Display - Resetting SRI After Service, Instrument Cluster With Maintenance Interval Extension (9 Of 9)
