Minimum mileage

This function is used to set a fixed minimum mileage in the instrument cluster for the SRI.

Indicated on display

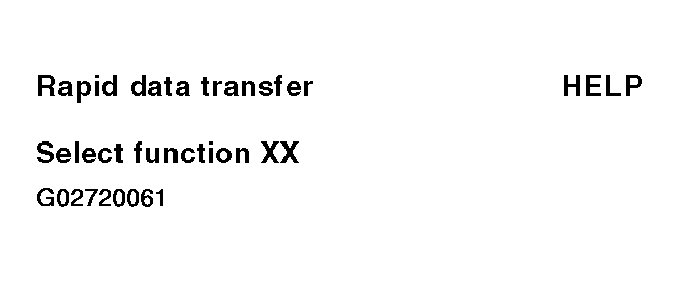

Fig 1: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (1 Of 9)

Press -1- and -0- and confirm by pressing the -Q- button.

Indicated on display

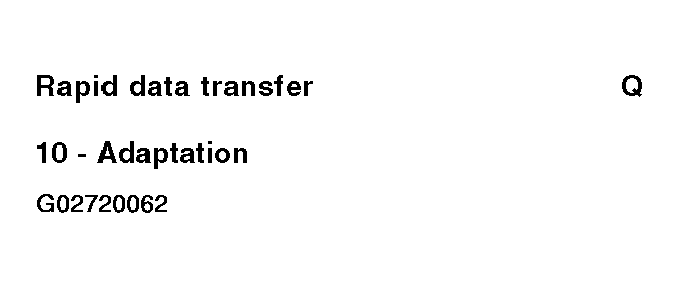

Fig 2: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (2 Of 9)

Press -Q- button to confirm input.

Indicated on display

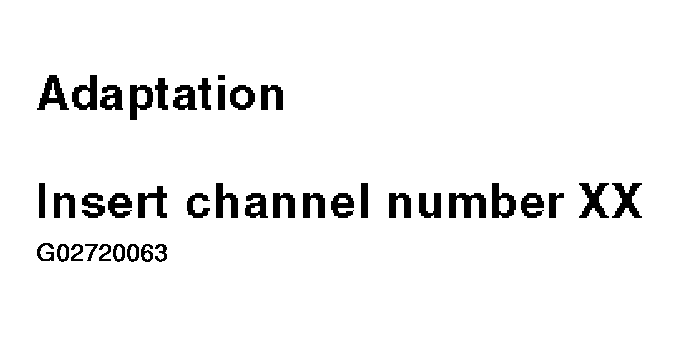

Fig 3: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (3 Of 9)

Press buttons 4- and -2-.
Press -Q- button to confirm input.

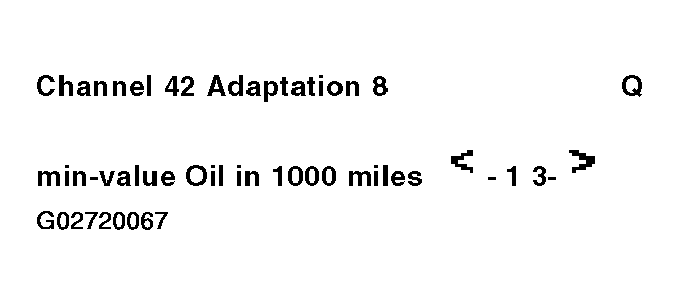

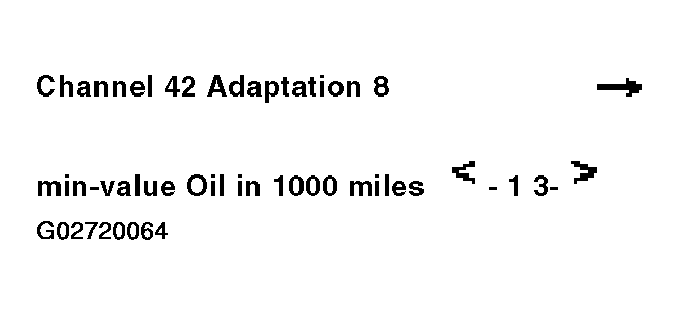

Fig 4: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (4 Of 9)

Indicated on display: Factory adjusted value for the minimum mileage (in miles) until next service is displayed (here for example 8 represents 8000 miles)

NOTE:

The currently valid specifications can be found in the "Maintenance" book.
Input of current specified value is only possible in units of 1000, indication in display also changes by units of 1000.
In countries where speedometers are calibrated in miles, adaptation can be performed in miles.
When replacing instrument cluster, this value is already set.
Values can only be input directly using the scan tool keypad.
If an incorrect value is input, the "Adaptation" function is terminated and must be re-initiated.

Press --> button.

Indicated on display

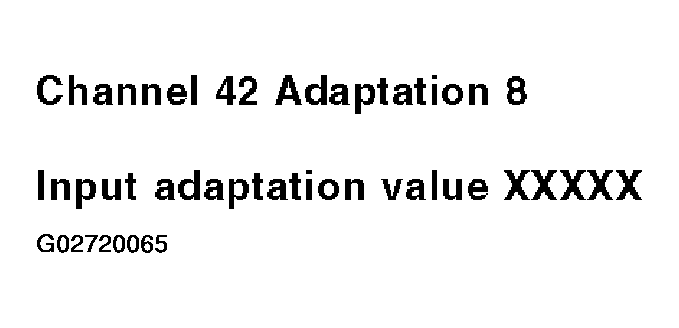

Fig 5: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (5 Of 9)

Input specified value using keypad, filling initial positions with "0".

Specification: 8000

Keypad input: 00008

Indicated on display

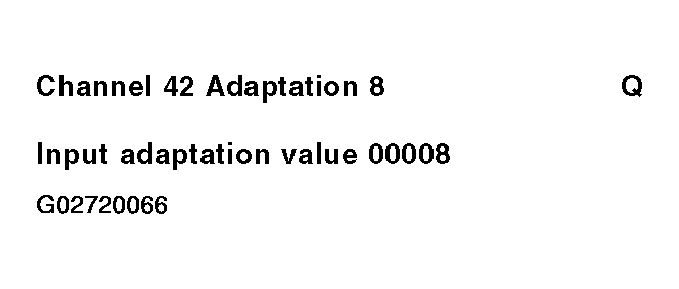

Fig 6: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (6 Of 9)

Press -Q- button to confirm input.

Indicated on display

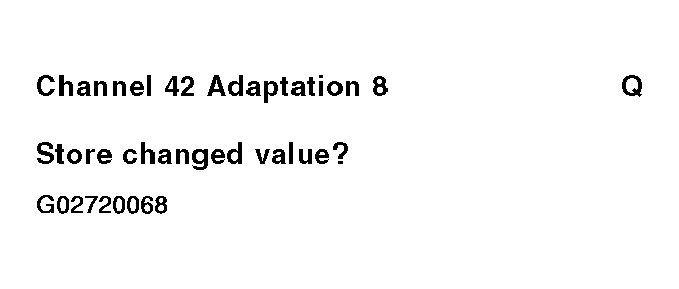

Fig 7: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (7 Of 9)

Press -Q- button to confirm input.

Indicated on display

Fig 8: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (8 Of 9)

Press -Q- button to confirm input.

Indicated on display

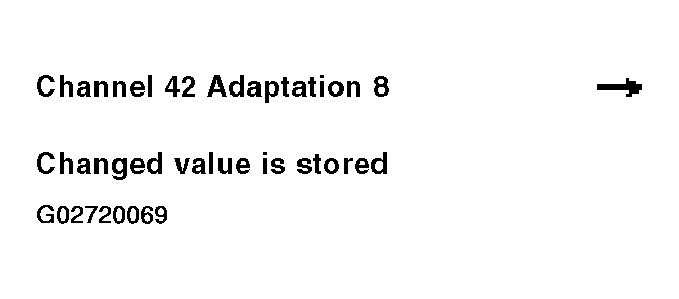

Fig 9: VAG 1551 Scan Tool Display - Minimum Mileage, Instrument Cluster With Maintenance Interval Extension (9 Of 9)

End adaptation of the minimum mileage by pressing the --> button.
