Adaptation of fuel gauge sender resistance range

This function is used to adjust the fuel gauge sender resistance range if the fuel gauge display in the instrument cluster does not match the actual amount of fuel in the tank.

Indicated on display

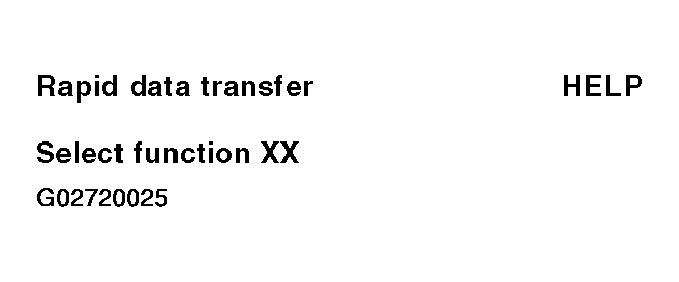

Fig 1: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (1 Of 9)

Press -1- and -0- and confirm by pressing the -Q- button.

Indicated on display

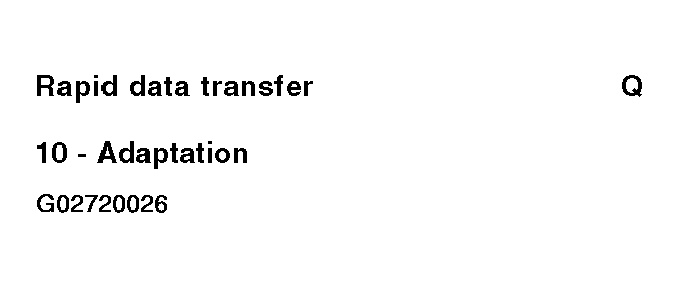

Fig 2: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (2 Of 9)

Press -Q- button to confirm input.

Indicated on display

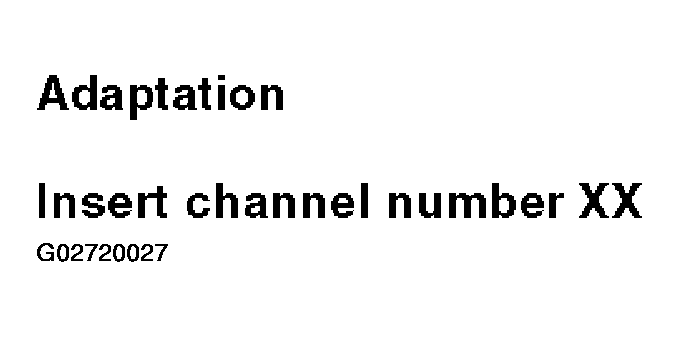

Fig 3: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (3 Of 9)

Press buttons 3- and -0-.
Press -Q- button to confirm input.

Indicated on display: Adaptation value is displayed, for example 128.

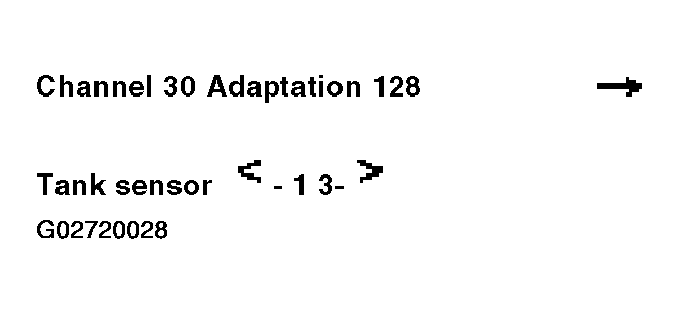

Fig 4: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (4 Of 9)

NOTE:

"128" is the adaptation value for the standard resistance range for the fuel gauge sender as set by the factory.
The resistance value for the fuel gauge sender resistance range can be adjusted by +8 Ohm to give an adaptation value between 120 and 136..
If the value "128" was changed due to a customer complaint, the changed value must be transferred when replacing instrument cluster.

Press --> button.
Indicated on display

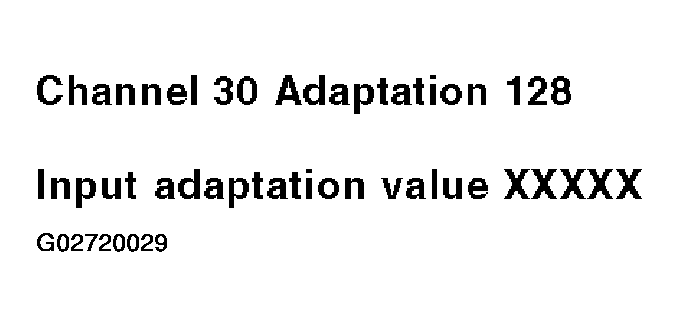

Fig 5: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (5 Of 9)
Input desired correction value using scan tool keypad, filling initial positions with "0" and watch how the display responds.

Example:

Desired input value: 132

Keypad input: 00132

Indicated on display

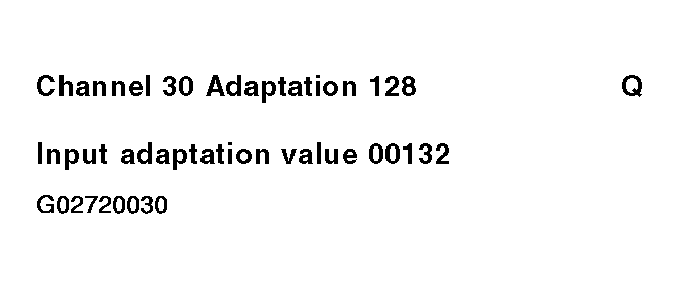

Fig 6: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (6 Of 9)
Press -Q- button to confirm input.
Indicated on display

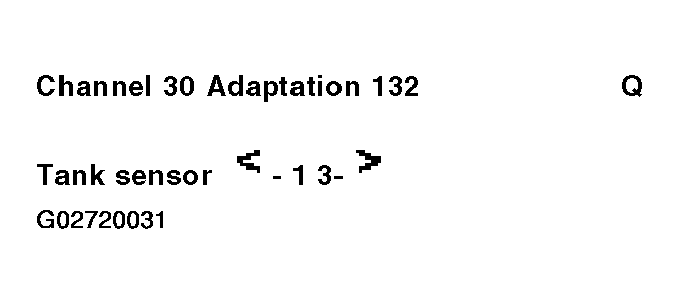

Fig 7: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (7 Of 9)
Press -Q- button to confirm input.
Indicated on display

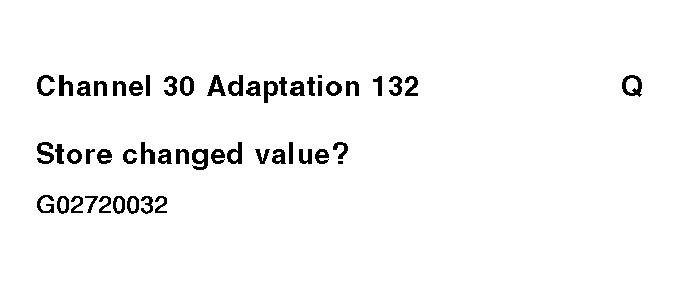

Fig 8: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (8 Of 9)
Press -Q- button to confirm input.
Indicated on display

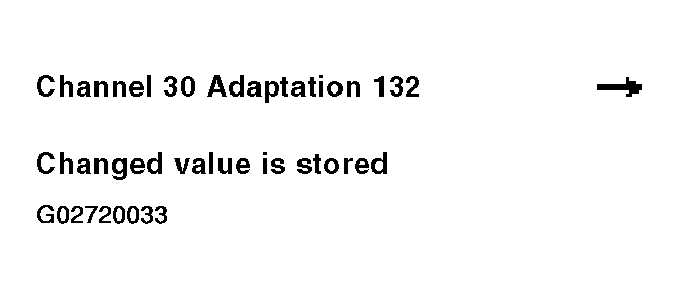

Fig 9: VAG 1551 Scan Tool Display - Adaptation Of Fuel Gauge Sender Resistance Range, Instrument Cluster With Maintenance Interval Extension (9 Of 9)
End adaptation of the fuel gauge sender resistance range by pressing the --> button.
