Adaptation of auxiliary heater
Indicated on display

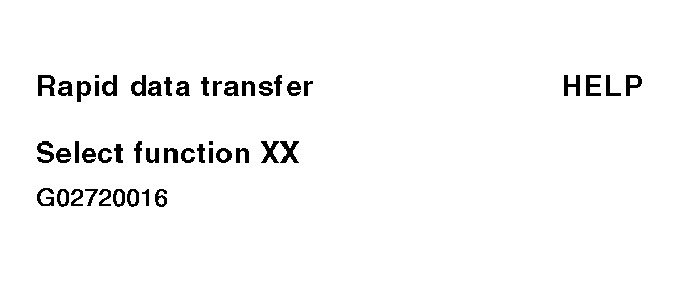

Fig 1: VAG 1551 Scan Tool Display - Adaptation Of Auxiliary Heater, Instrument Cluster With Maintenance Interval Extension (1 Of 9)
- Press -1- and -0- and confirm by pressing the -Q- button.
Indicated on display

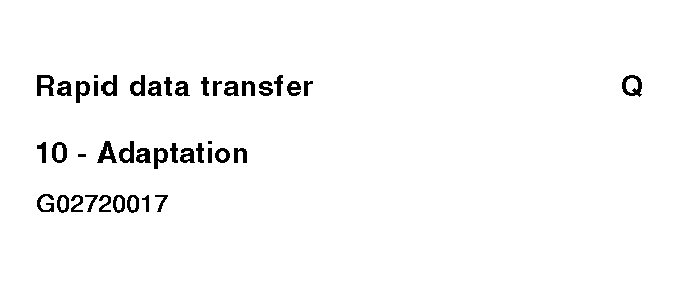

Fig 2: VAG 1551 Scan Tool Display - Adaptation Of Auxiliary Heater, Instrument Cluster With Maintenance Interval Extension (2 Of 9)
- Press -Q- button to confirm input.
Indicated on display

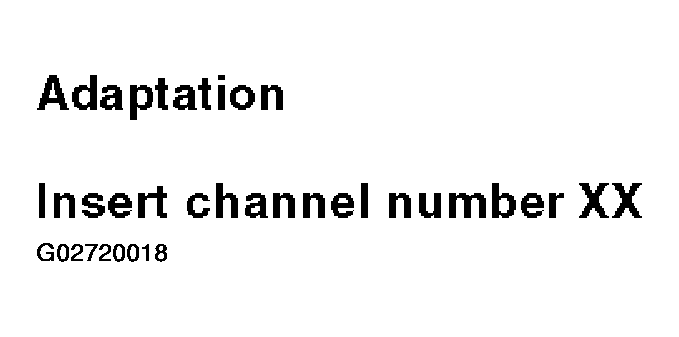

Fig 3: VAG 1551 Scan Tool Display - Adaptation Of Auxiliary Heater, Instrument Cluster With Maintenance Interval Extension (3 Of 9)
- Press buttons 1- and -8-.
- Press -Q- button to confirm input.
- Indicated on display: Adaptation value is displayed, for example 0.

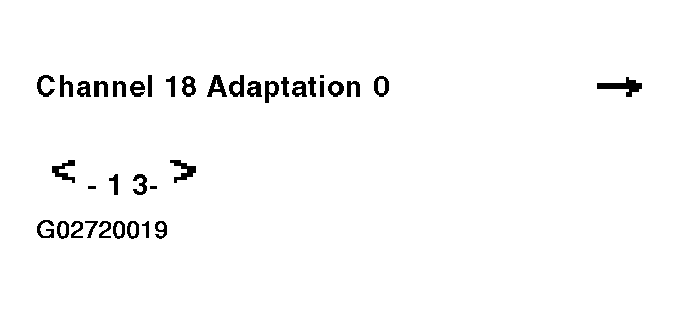

Fig 4: VAG 1551 Scan Tool Display - Adaptation Of Auxiliary Heater, Instrument Cluster With Maintenance Interval Extension (4 Of 9)
NOTE:
- Adaptation value "0" is input if auxiliary heater is not installed.
- Adaptation value "1" is input if an auxiliary heater is installed that is independent of engine condition (running or not).
- Adaptation value "10" is input if an auxiliary heater is installed that switches off when engine is not running.
- Press --> button.

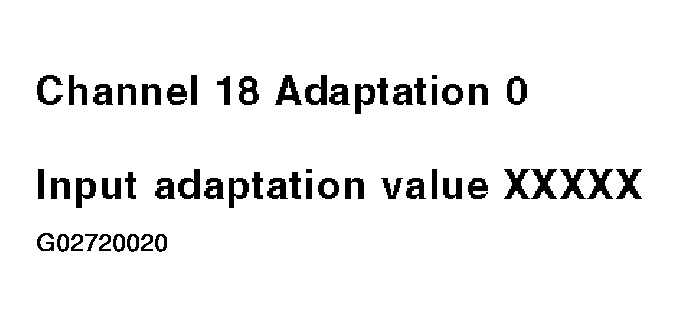

- Indicated on display
- Input adaptation value using keypad, filling initial positions with "0," for example 00001.

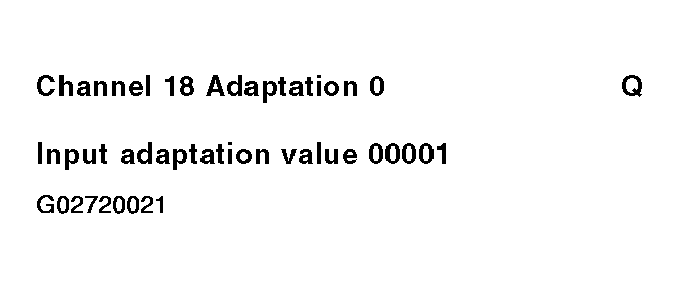

- Indicated on display
- Press -Q- button to confirm input.

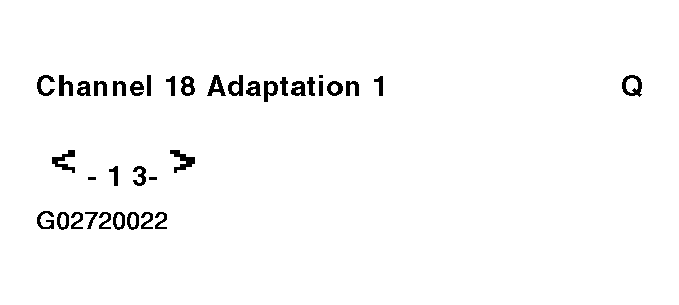

- Indicated on display
- Press -Q- button to confirm input.

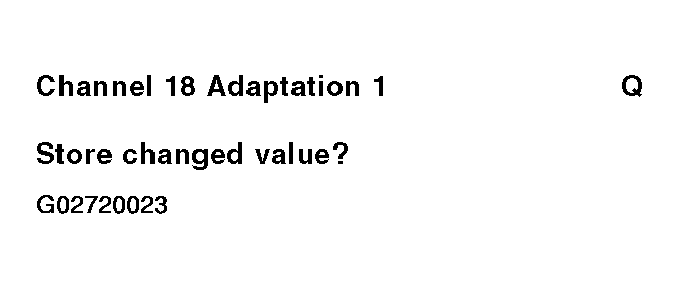

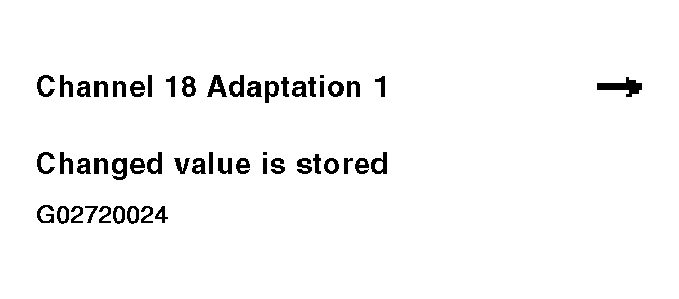

- Indicated on display
- Press -Q- button to confirm input.
- Indicated on display
- End adaptation of the auxiliary heater by pressing the --> button.
