Instrument cluster

NOTE:
  • The display will always show the actual values obtained from the sensors. The values which appear on the instrument cluster are modified and may be different.
  • If the actual engine coolant temperature is between 80° C (176° F) and 100° C (212° F), the instrument cluster will always show 90° C (194° F).
  • The display groups shown here are the only ones which can appear for the instrument cluster.

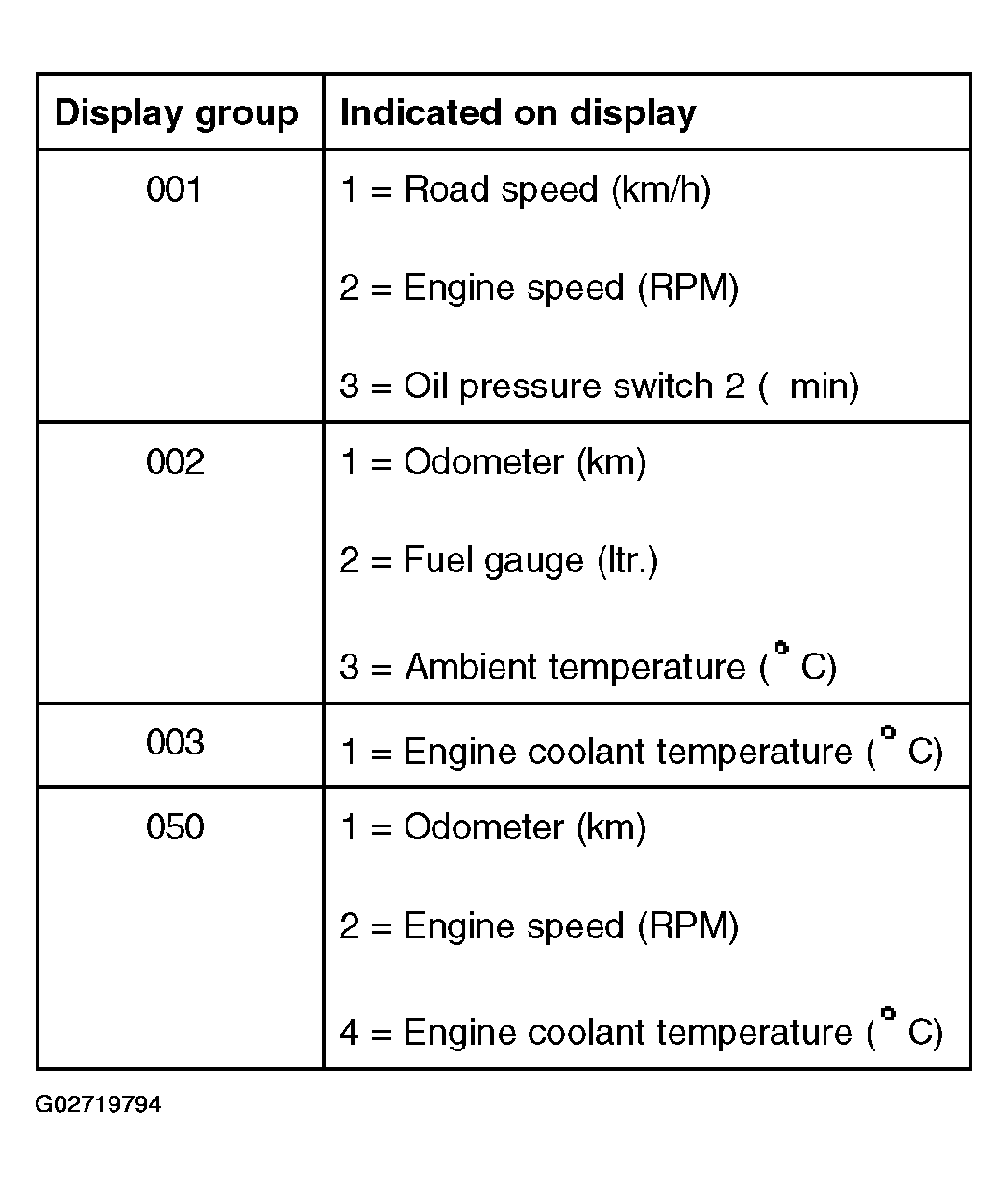

Fig 1: Read Measuring Value Display Groups List - Instrument Cluster
G02719794
