Instrument cluster with maintenance interval extension (MIE), On Board Diagnostic (OBD)
>>
Measuring Value Block, reading
>>
Measuring value block 11
Measuring value block 11

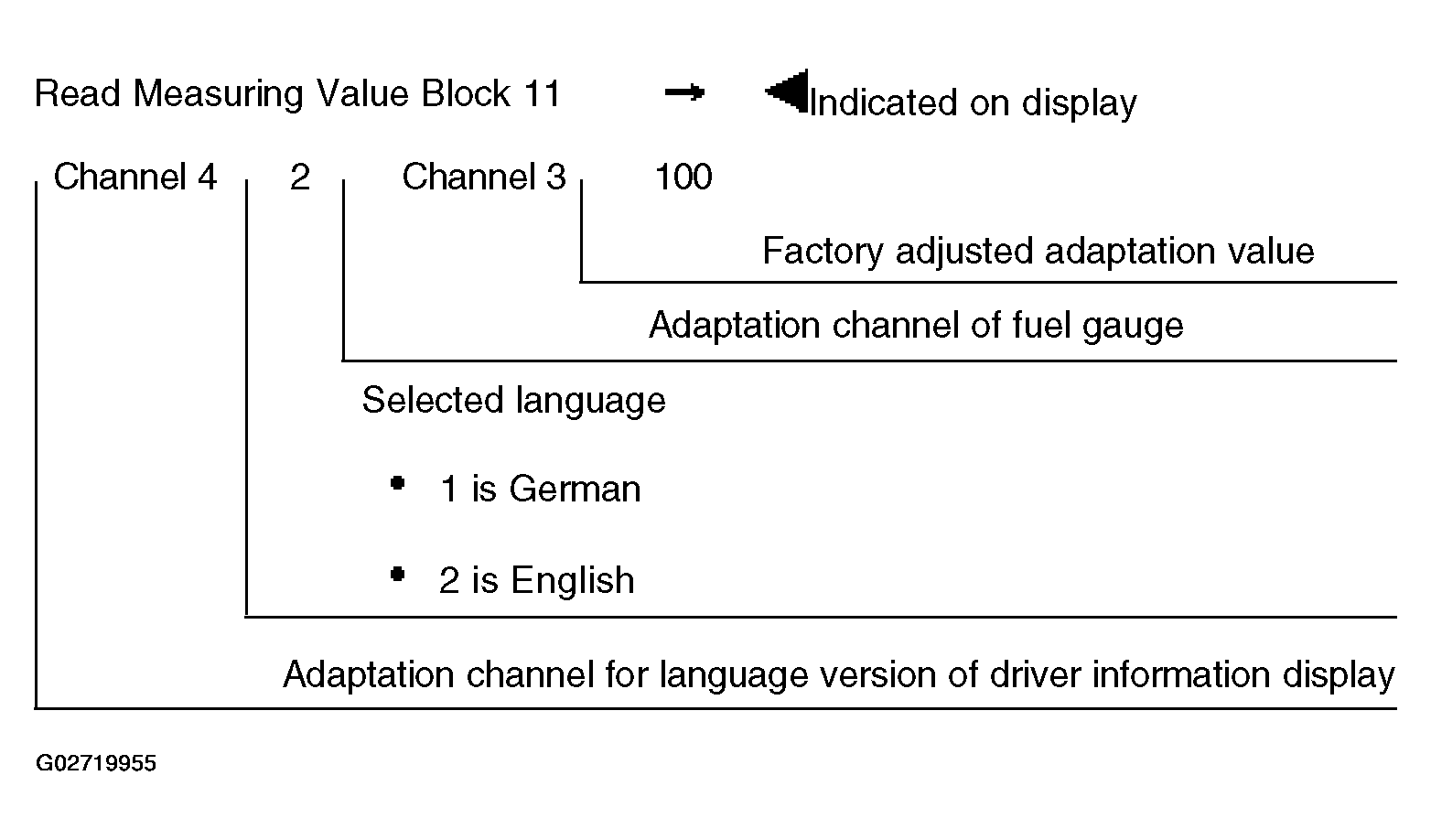

Fig 1: Measuring Value Block 11 - Instrument Cluster With Maintenance Interval Extension
NOTE:
If the value "100" in display field 4 was changed due to a customer complaint, the changed value must be transferred when replacing instrument cluster.
