Instrument cluster with maintenance interval extension (MIE), On Board Diagnostic (OBD)
>>
Measuring Value Block, reading
>>
Measuring value block 10
Measuring value block 10

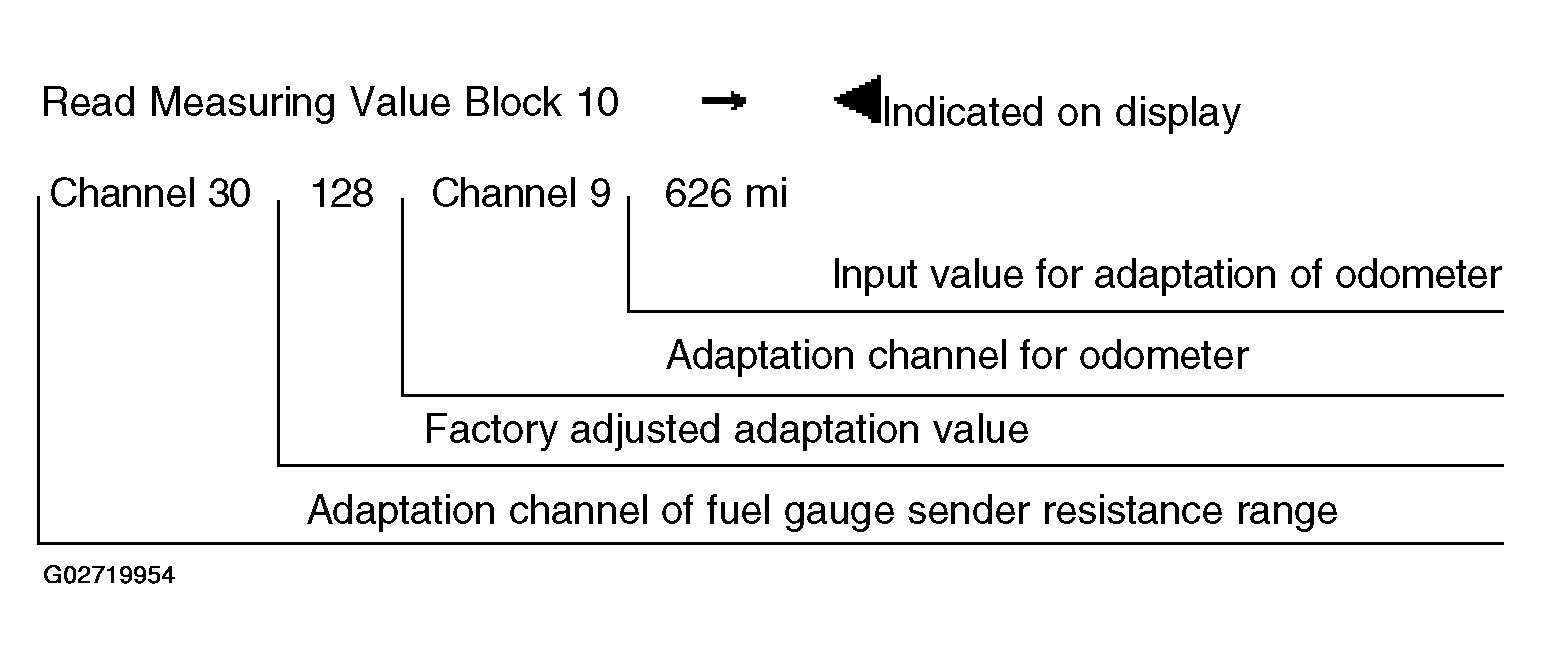

Fig 1: Measuring Value Block 10 - Instrument Cluster With Maintenance Interval Extension
NOTE:
If the value "128" in display field 2 was changed due to a customer complaint, the changed value must be transferred when replacing instrument cluster.
